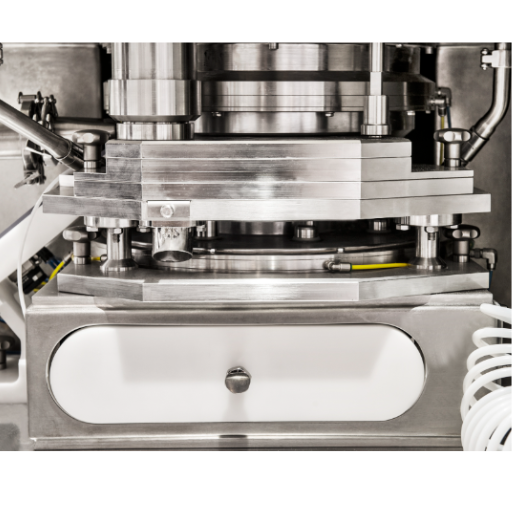

What is a Rotary Tablet Compression Machine?
A Rotary Tablet Compression Machine, also known as a Tablet Press Machine, is used in the pharmaceutical industry to compress powdered or granular materials into tablets. The machine applies immense pressure to the material, forcing the particles to bind together and take on the desired shape of the tablet. The environment within the device is strictly controlled to ensure that the tablets remain uniform in size, weight, and composition.
Understanding the Basics of Tablet Compression
Tablet compression is one of the healthcare industry’s most widely used manufacturing methods. The process involves compressing a powder or granular material into a solid dosage form. The finished product is then used to deliver active ingredients safely and precisely.
The Role of Rotary Tablet Press Machines in Tablet Manufacturing
When it comes to tablet manufacturing, Rotary Tablet Press Machines play a critical role. These machines are designed to provide high accuracy and efficiency, producing tablets that meet strict quality standards. The Rotary Tablet Press Machine compresses the material into a tablet using a series of punches and dies, ensuring that the pills are uniform in size and weight.
Advantages of Using Rotary Tablet Press Machines
Rotary Tablet Press Machines offer advantages over other tablet presses and manufacturing methods. One of the key advantages is their precision and efficiency. These machines produce a large volume of tablets quickly while maintaining high accuracy and consistent quality. They also allow for flexibility in dose strength, making creating tablets in different sizes and strengths possible.
Functional Parts of a Rotary Tablet Compression Machine
A Rotary Tablet Compression Machine comprises several functional parts that work together to produce high-quality tablets. These include the hopper, feeder, turret, punches, and dies. The hopper holds the material to be compressed, the feeder delivers the material to the turret, and the turret has the forces and breaks. The points come down onto the dies, compressing the material into the desired shape and size of the tablet.
Exploring the Compression Process in Rotary Tablet Presses
A Rotary Tablet Press Machine’s compression process is complex and precise. The process is initiated when the material is fed into the hopper. From there, the feeder delivers the material to the turret. The dies within the turret are then filled with fabric, and the punches come down to apply pressure and compress the material.
Several factors can affect the outcome of the compression process. These factors include the type of machine being used, the characteristics of the material being compressed, and the speeds and pressures at which the device is operated. Operators must carefully monitor these factors to ensure that the tablets produced meet the required quality standards.
How Does a Rotary Tablet Compression Machine Work?
A rotary tablet press machine is a valuable asset in the manufacturing industry. It produces tablets from dry powder or granules by exerting a compressive force on the powder between two punches. These punches are part of the intricate design of the rotary tablet press machine.
The Role of Punches in Tablet Compression
Punches compress the dry powder or granules into a compact, uniform tablet shape. The points come in different shapes, sizes, and designs, affecting the tablet’s thickness, hardness, body, and weight. The facts are fitted into the turrets and positioned precisely to match the powder’s flow. The points move vertically, compressing the powder between them and forming the tablet.

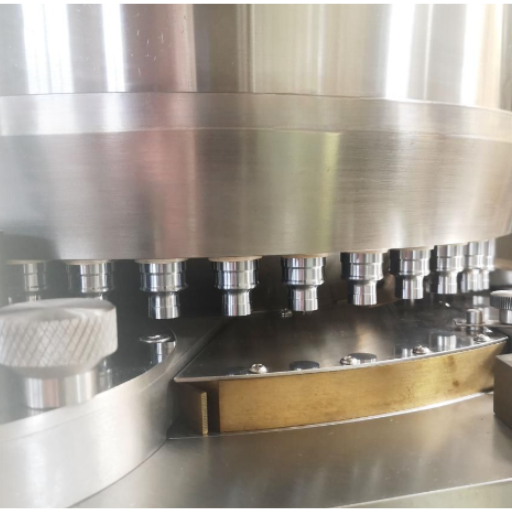

Tooling and Turrets in Rotary Tablet Press Machines
The tooling and turrets are the backbones of rotary tablet press machines. They hold the punches and the dies used in the tablet-making process. The tooling consists of upper, middle, and lower energies, while the turret is the rotating section that holds the points and the dies. The turrets have multiple stations arranged circularly, allowing for the continuous production of tablets. Each station has a set of punches, and each energy moves independently to create the desired tablet thickness and weight.
Understanding the Tablet Feeding Process
The tablet feeding process is a crucial element in the overall production process. It involves the correct flow of the powder or granules onto the punches to ensure the uniformity of the tablets. The feeding system consists of feeders, hoppers, and chutes. The feeders regulate the flow of powder or granules into the hoppers, where they are stored before being released onto the punches. The lines guide the flow of the powder onto the points, ensuring that the tablets are of the correct thickness and weight.
Die Cavity and Tablet Compression
The die cavity is the space between the upper and lower punches where the powder is compressed into a tablet. The die cavity’s size, shape, and depth dictate the tablet’s size and shape. The punches’ compressive force exerted on the die cavity creates the tablet’s hardness and density. Precision force is controlled to ensure the uniformity and quality of the tablets.
Compression Force and Tablet Weight Control
The rotary tablet press machine uses compression force to produce the desired weight and hardness tablets. The compression force is achieved by adjusting the height and weight of the punches. The filling depth of the powder or granules in the die cavity controls the importance of the tablets. The machine operator can adjust the compression force and fill depth to produce varying weight and hardness tablets. The control of these factors ensures the consistent quality of the manufactured tablets.
Recommended Reading: TABLET PRESS MACHINE
Applications of Rotary Tablet Compression Machines
The pharmaceutical industry commonly uses Rotary tablet press machines to produce tablets. These machines are also heavily used to create nutraceuticals, herbals, and other dietary supplements. Apart from these industries, rotary tablet compression machines have found their applications in building industrial tablets for dishwashers and water treatment tablets.
Tablet Production in the Pharmaceutical Industry
The pharmaceutical industry is the largest user of rotary tablet press machines. These machines produce various tablets for pain relief, antibiotics, and vitamins. The devices can have tablets of different shapes and sizes. In the pharmaceutical industry, rotary tablet press machines are especially valued for their precision in dosing and quality control, allowing manufacturers to produce consistent, high-quality tablets.
Other Industries Utilizing Tablet Press Machines
Apart from the pharmaceutical industry, rotary tablet press machines produce other types, such as industrial and household tablets. Industrial tablets are used in various applications such as dishwashing, water treatment, and pest control. Household tablets include cleaning agents, detergents, and deodorizers. The machines can produce highly uniform tablets, have consistent weight, and dissolve properly in the intended application.
Advantages of Rotary Tablet Press Machines in Tablet Manufacturing
Rotary tablet press machines offer several advantages over other tableting technologies. One of the main benefits of using a rotary tablet press machine is its ability to produce a large number of tablets in a short period. This makes the devices ideal for mass production of tablets, which is essential for pharmaceutical and other industries that require high-volume output. In addition, these machines can also produce tablets of different shapes and sizes, giving manufacturers more flexibility in tablet design.
Exploring the Pill Pressing Process
The pill pressing process involves several steps, starting with powder mixing, followed by compression, and finally, tablet coating. Once the powdered ingredients are mixed, the mixture is fed into the tablet press machine. The rotary tablet press machine has a rotating turret filled with punch-and-die sets that compress the powder to form a tablet. Once the pills have been developed, they are discharged from the machine and undergo tablet coating, which improves appearance and enhances strength.
The Importance of Weight Control in Tablet Manufacturing
Weight control is a crucial aspect of tablet manufacturing, as it influences the quality, efficacy, and safety of the tablets. Each tablet’s active ingredient must be consistent to ensure product reliability and control against under or overdose. This consistency is achieved by regulating the weight of each tablet. Rotary tablet press machines have built-in systems that control the importance of each tablet produced. These systems detect variations and adjust the powder’s feeding to maintain each tablet’s targeted weight.
Troubleshooting and Maintenance of Rotary Tablet Compression Machines
A rotary tablet compression machine can experience issues that can cause delays or reduce the quality of the products produced. The following are some of the product quality during the compression process alongside their potential causes:
Tablet capping or lamination: This occurs when the upper or lower part of a tablet separates from the rest of the tablet. This issue is attributed to several factors, such as high humidity, inadequate drying of the coarse powder, or inadequate binder.
Tablet sticking: This issue occurs when the tablet adheres to the punch. The causes may include pressure imbalance within the machine, worn-out punches or dies, or inadequate lubrication.
Tablet picking: When the tablet sticks to the die wall instead of ejecting, picking occurs. It can result from using unsuitable lubricants, excessive dwell time, incorrect tablet formulation, or worn-out punches.
Machine vibration occurs when the machine produces excessive noise or shakes. The potential causes of this issue include poorly balanced rollers, damaged bearings, or loose screws.
Tablet weight variation or size disparity: This issue occurs when the tablets’ weight or size differs from the specified size. The potential causes include uneven powder flow, incorrect compression force, or worn-out dies.
To mitigate these issues, it is essential to schedule regular maintenance checks on rotary tablet compression machines. Routine maintenance and cleaning of rotary tablet presses can help identify problems before they become more extensive. The following are maintenance and cleaning guidelines for rotary tablet presses:
Regular Maintenance and Cleaning of Rotary Tablet Presses:
Keep the machine clean and debris-free: Before production, ensure the device is free of debris and other contaminants. Clean the device with a soft brush and a vacuum cleaner if debris is present.
Lubricate the machine correctly: To keep the equipment operating at peak performance, lubricate the engine at regular intervals as specified by the manufacturer’s instructions.
Inspect and replace worn-out parts regularly: Ensure that all critical machine parts are inspected and, if necessary, replaced regularly.
Verify the settings of the compression force: Verify and adjust the compression force settings as needed.
Recommended Reading: Find The Perfect Machine For A Tablet Press
Best Practices for Extending the Lifespan of Rotary Tablet Compression Machines:
Extending the lifespan of rotary tablet compression machines requires proper care and maintenance. The following are the best practices for maximizing the performance and lifespan of rotary tablet presses:
Proper Machine Operation: Ensure operators receive appropriate training on the safe and efficient operation of rotary tablet press machines to minimize damage caused by improper handling.
Regular Maintenance: Schedule regular inspections, cleaning, and testing of the rotary tablet compression machines to identify problems before they escalate into more significant issues.
Correct Lubrication: Ensure the machine is regularly lubricated as the manufacturer directs to prevent wear and tear.
Ensuring Optimal Performance of Tablet Compression Rollers:
The performance of tablet compression rollers impacts the quality of the pressed tablets. Therefore, it is necessary to maintain the rollers correctly. The following are tips for ensuring optimal performance of tablet compression rollers:
Verify the dimensions of the rollers: Regularly check the sizes to ensure they are within the specified tolerances. Out-of-tolerance rollers can cause issues such as tablet weight variation.
Clean the rollers regularly: Before and after each use, clean the rollers with mild detergent and warm water to remove any particles buildup that can affect the quality of the tablets processed.
Use the correct lubricant: Using the wrong type of lubricant can cause the rollers to become dirty and reduce efficiency. For optimal performance, use only the oils recommended by the manufacturer.
Replacing and Calibrating Punches in Rotary Tablet Presses:
The punch and die are essential parts of the rotary tablet press machine, and their calibration is necessary for optimal performance. The following are tips for proper calibration and replacement of punches and dies:
Follow the manufacturer’s guidelines for calibration: Accurate calibration of energies and dies can help avoid common issues such as weight variation or tablet sticking.
Replace worn punches and dies: Regularly inspect the punches and passes for wear and replace any components that show damage signs.
Choosing the Right Rotary Tablet Compression Machine
Understanding the different types of rotary tablet press machines, their benefits and drawbacks, and the various factors to consider when selecting a device are essential for ensuring optimal performance and output for your specific product.
Considerations for Selecting a Rotary Tablet Press Machine
Several key considerations must be remembered when selecting a rotary tablet press machine. Production speed, capacity, output, tooling, dies, and automation capabilities are all critical factors that must be considered to ensure the chosen device meets your production needs and budget requirements.
Understanding the Capacity and Output of a Tablet Compression Machine
Capacity and output are essential when selecting a tablet compression machine. Capacity refers to the maximum number of tablets the device can produce per hour. In contrast, work refers to the number of tablets made in a particular timeframe. Understanding your production needs and requirements is crucial for selecting a device with the appropriate capacity and output capabilities.
Exploring the Different Types of Rotary Tablet Press Machines
Different types of rotary tablet press machines are available in the market, each with benefits and drawbacks. SSingle-punch multi-station and turret tablet press machines are the most commonly used in pharmaceutical manufacturing. Single-punch machines are typically used for small-scale production, while multi-station devices are suitable for large-scale production, with turret machines offering a good balance between the two.
Factors to Consider When Purchasing a Tablet Press Machine Used
Purchasing a used tablet press machine can be economical, but it has risks. As a result, various vital factors must be considered to ensure that the device you choose suits your production needs, budget, and quality requirements. These factors include the machine’s condition, age, maintenance history, availability of spare parts, and service support.
Choosing Between Single Punch and Multi-Station Tablet Presses
Both single-punch and multi-station tablet press machines have their benefits and drawbacks. Single-punch machines are easier to use and are typically more affordable than multi-station machines, making them ideal for small-scale production. On the other hand, multi-station devices have higher production efficiency and faster production speed and can produce a higher volume of tablets, making them ideal for large-scale production. Choosing between the two will ultimately depend on your production needs, quality requirements, and budget constraints.
Recommended Reading: Discover The Essential Parts Of Tablet Compression Machines
Frequently Asked Questions:
Q: What is a rotary tablet compression machine?
A: A rotary tablet compression machine, also known as a rotary tablet press, is a mechanical device used in the pharmaceutical industry to compress granules into tablets.
Q: How does a rotary tablet compression machine work?
A: The primary compression process of a rotary tablet press involves two punches, an upper punch and a lower punch, within a die. The granules are loaded into the die cavity, and the energies compress the granules into tablets.
Q: What are the advantages of a rotary tablet press?
A: The advantages of a rotary tablet press include high production capacity, uniform tablet weight, consistent tablet hardness, and the ability to produce tablets in various shapes and sizes.
Q: What is the role of the upper and lower punches in a rotary tablet press?
A: The upper and lower punches in a rotary tablet press compel the granules into tablets within the die. The lower effectiveness moves upwards, compressing the granules, while the upper energy holds the tablet in place before ejection.
Q: What is a rotary tablet press’s compression and ejection process?
A: The compression process in a rotary tablet press involves the lower and upper punches compressing the granules into tablets within the die. After compression, the ejection process occurs, where the lower energy pushes the pills out of the die cavity.
Q: How does a rotary tablet press differ from a single-punch tablet press?
A: A rotary tablet press is a multi-station tablet press that can produce multiple tablets simultaneously, while a single-punch tablet press can only have one pill at a time.
Q: What is the weight of tablets produced by a rotary tablet press?
A: The weight of tablets produced by a rotary tablet press can vary depending on the design and specifications of the machine. The weight can be adjusted by controlling the granules loaded into the die cavity.
Q: What types of tablets can be produced using a rotary tablet press?
A: A rotary tablet press can produce various types of tablets, including round tablets, oblong tablets, scored tablets, and customized tablet shapes.
Q: What is the role of the tooling station in a rotary tablet press?
A: The tooling station in a rotary tablet press holds the punches and dies. It allows for quick and easy tooling changeover, enabling the production of different tablet shapes and sizes.
Q: How is a rotary tablet press used in tablet manufacturing?
A: A rotary tablet press is used in manufacturing to compress granules into tablets efficiently. It ensures uniform tablet weight, consistent hardness, and high production output.
