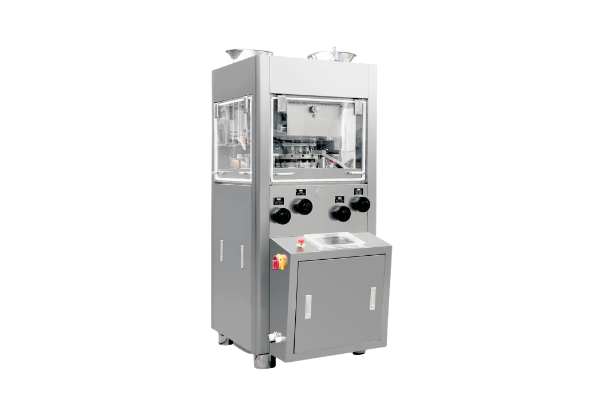

Components of Tablet Making Machine

Components of Tablet Making Machine

Tablet press machines are essential equipment in the pharmaceutical and food industries for producing high-quality tablets for human consumption. These machines are designed to produce tablets with precise weight, texture, and other specifications. A tablet press machine comprises five key components: hopper, feeder, punches and dies, cam tracks, and compression rolls. In this article, we will delve into each of these components and explain their roles in making a tablet press machine work efficiently and effectively.

Basic components of a tablet press machine

Hopper
The hopper is a component located at the top of the tablet press machine that receives the raw materials. It stores the mixture of powders or granules that will be transformed into tablets. The hopper ensures that the tablet press machine is supplied with the appropriate amount of material, and it also makes it easy to adjust the materials’ flow rate during production. The material stored in the hopper must be consistent and have excellent flow and compression properties. The hopper must be maintained and kept clean to avoid product contamination and ensure optimal performance.

Feeder
The feeder is a component that delivers the raw materials from the hopper to the die table, where the tablet is formed. It helps to control the quantity of the material that enters the die and ensures that the dies are adequately filled. The feeder regulates the flow rate and keeps the material in constant motion to prevent clotting or clogging. The feeder can be either automatic or manual, depending on the size and complexity of the tablet press machine. Cleaning and proper maintenance of the feeder are essential to avoid product contamination and maintain optimal performance.

Punches and Dies
The punches and dies are critical components in a tablet press machine. These components work together to form the shape, size, and weight of the tablet. The die is stationary and has a cavity that holds the granules or powder, while the punches move up and down to compress the material into a tablet. The punches and dies have a specific shape, and their design must be precise to ensure that the tablet’s weight and thickness are uniform. Regular cleaning, lubrication, and proper maintenance of the punches and dies are crucial to prevent tool wear or failure and ensure optimal performance.

Cam Tracks
The cam tracks are essential components in a tablet press machine that control the movement, speed, and position of the punches and dies. The cam tracks regulate the flow of material from the feeder to the die table while ensuring that the punches and dies remain synchronized. The cam tracks must be designed accurately to ensure that the punches move in the correct sequence and position. The cam tracks require regular maintenance and lubrication to prevent wear or damage and ensure optimal performance.

Compression Rolls
The compression rolls are components located at the bottom of a tablet press machine. They are responsible for applying pressure to the material to create the final tablet’s compressive force. The compression rolls ensure that the granules or powder are uniformly compressed to form a tablet with optimum weight, surface texture, hardness, and thickness. The compression rolls must be maintained and kept clean to prevent product contamination and ensure optimal performance.

In conclusion, the five key components of a tablet press machine work together in tandem to produce high-quality and uniform tablets. Each component plays a unique role in the tablet-making process and must be designed and maintained accurately to ensure optimal performance. Regular cleaning, lubrication, and maintenance of these components are essential to prevent product contamination, premature wear, and tool failure. When all these components work together in sync, they ensure the best possible end-product, meeting the desired texture, taste, size and weight specifications.

Detailed functions of each component

Tablet press machines have become essential equipment in the pharmaceutical, cosmetics and food industries. They are used to manufacture tablets of varied shapes, sizes, and densities from a mixture of substances. Each component in a tablet press machine plays a critical role in the final product’s efficiency, accuracy, and quality. Below is a comprehensive breakdown of the critical components of a tablet press machine.

Hopper

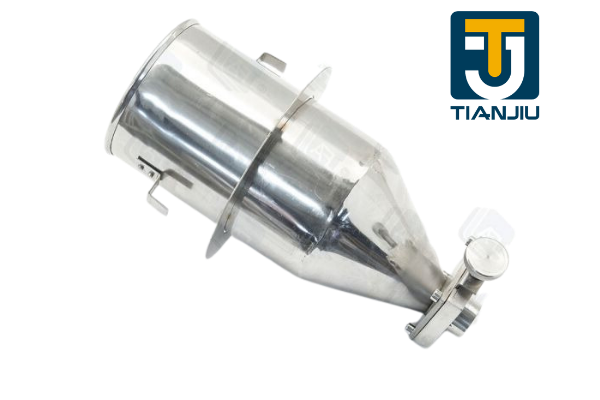

Hopper
The hopper is a container that holds raw materials before they are processed into tablets. There are two types of hoppers: gravity and force-feed hoppers. Gravity hoppers utilize the force of gravity to get the products into the feed system, while force-feed hoppers use mechanical force to propel the products forward.

The purpose of the hopper is to hold the raw material while feeding the feeder system with a steady and uniform supply to prevent idle conditions resulting in poor performance, tablet defects, or machine downtime. The hopper’s effectiveness depends on proper filling, monitoring, and maintaining.

Feeder

Feeder

The feeder system conveys granules, powders, or pellets from the hopper to the compacting system. The feeder ensures consistent and accurate material feeding at a desired and constant rate. Typically, there are two types of feeders: volumetric and gravimetric.

Volumetric feeders provide the consistent volume of material regardless of their weight, while gravimetric feeders measure the weight of the material and use this weight to determine the amount of material that needs to be supplied.

The feeder system has numerous moving parts and parameters that can be set up for efficiency optimization. The operator can adjust the feed rate, feeder auger speed, and feeder hopper agitation to ensure a uniform feed rate, material flowability, and control of particle distribution.

Punches and Dies

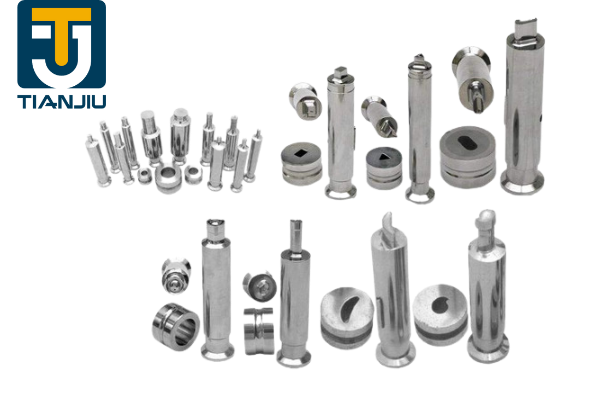

Punches and Dies

All compression-based tablet presses require punches and dies to compress the material mixture in between them. The punches and dies are key components responsible for shaping the final product.

Punches come in different shapes and sizes, depending on the desired tablet shape and thickness. For example, punches can be circular, oval, rectangular, or irregular. The die size and shape determine the final tablet size and shape.

The accuracy and quality of the final product depend on the maintenance of the punches and dies. Wear and tear are common issues that gradually result in a loss of accuracy and performance. Regular maintenance, including cleaning, sharpening, and polishing, can help prolong the lifespan of the punches and dies.

Cam Tracks

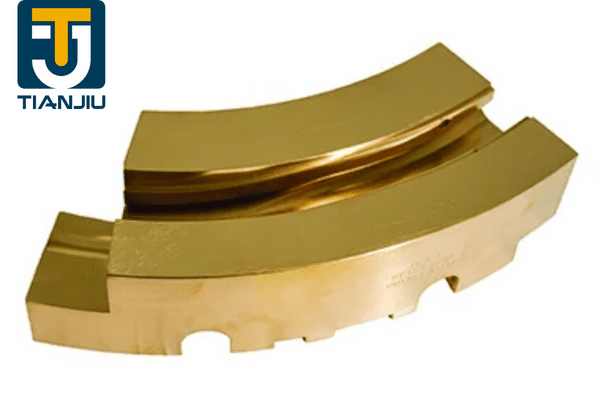

Cam Tracks

Cam tracks are responsible for controlling the movement of the punches as they approach the compression zone. The cam tracks control the depth and rate of the punches’ descent, ensuring the production of uniform and quality tablets.

There are different types of cam tracks, including mechanical, rotary, and hydraulic. The type of cam track used depends on the specific tablet press machine and production requirements.

The cam tracks’ role in the tablet press machine is critical, as it ensures the proper alignment of punches with the dies, reduces vibration, and enhances the smoothness of the press’s operation.

Compression Rolls

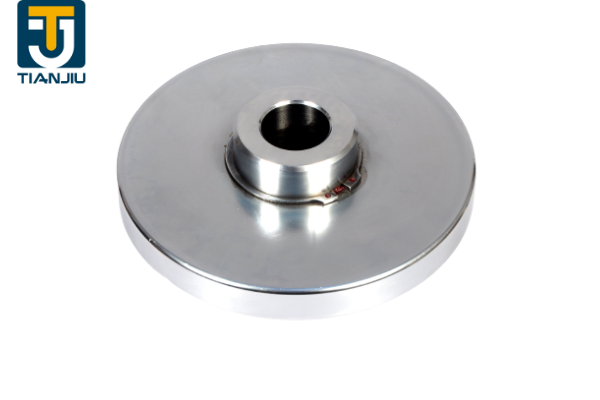

Compression Rolls

Compression rolls are used in some tablet press machines to compress material in the feeding system before entering the compression zone. The rolls reduce the material’s volume, increase the product’s density, and facilitate optimal feeding of the material into the die.

There are different types of compression rolls, including floating, spring-mounted, and fixed. Each type of roll has a unique mechanism for compressing the material.

In conclusion, understanding how each component in a tablet press machine works is critical in optimizing production efficiency, ensuring quality products and prolonging the machine’s lifespan. Proper maintenance and regular checking of each component are essential in identifying potential issues and taking corrective actions.

Benefits of knowing the components of tablet making machine

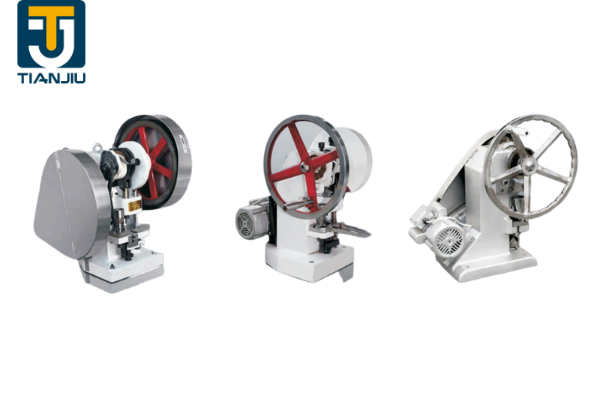

Benefits of knowing the components of tablet making machine

Improved Productivity

One of the primary benefits of knowing the components of a tablet press machine is improved productivity. By understanding how each component works, the operator can identify and troubleshoot potential issues before they escalate into major problems that can cause machine downtime, resulting in costly production delays. Furthermore, proper knowledge of the components helps to streamline the production process, making it more efficient and reducing the risk of errors that can lead to wastage.

Reduced Downtime and Maintenance Costs

Another significant advantage of knowing the components of a tablet press machine’s components is reduced downtime and maintenance costs. With proper knowledge of the various components, the operator can perform regular maintenance checks and identify any worn-out parts that may require replacement. This helps prevent breakdowns and ensure the machine’s smooth running, reducing the need for expensive repairs and replacement parts.

Enhanced Tablet Quality

Knowing the components of a tablet press machine can also lead to enhanced tablet quality. By identifying and addressing issues with individual components, such as worn-out punches or damaged dies, operators can ensure that the tablets produced are of the highest quality, ensuring a consistent dosage and appearance. A failure to address such issues can result in production of sub-standard tablets that have not met the required quality standards, which can damage the reputation of the pharmaceutical company.

Enhanced Operator Safety

Finally, knowledge of the components of a tablet press machine is crucial in ensuring operator safety. Operating such a complex machine can be dangerous, and operators need to have a good understanding of the different components, their functions, and the potential hazards associated with them. With proper knowledge of the machine’s components, the operator can safely and efficiently identify and address any malfunctions that may compromise the safety of the machine or the operator.

Practical Tips for Learning about the Components of a Tablet Press Machine

To learn about the various components of a tablet press machine, begin by consulting the machine’s manual or seeking guidance from experienced operators. Attend training sessions or workshops that focus on the operation and maintenance of the machine, and consult with experts in the field to gain a deeper understanding of the various components and their functions. Remember always to observe and follow the manufacturer’s guidelines on maintenance, operating procedures and safety measures.

Tips for Maintaining Tablet Press Machine Components

Regular maintenance is crucial to ensure tablet press machines’ reliable and efficient performance. This guide provides step-by-step instructions for industrial maintenance experts, factory owners, and operators to maintain the essential components of the tablet press machine.

A. Regular Inspection and Cleaning:

Inspect and clean the machine daily before use
Use a soft brush and vacuum to remove dust, debris, and other contaminants regularly
Inspect the components for signs of wear or damage, such as cracks or chips in the dies or punches, and replace them as needed
Clean the electrical components with a dry cloth or air compressor to avoid damage to the machine

B. Proper Lubrication and Maintenance:

Use the recommended lubricants for tablet press machines, such as food-grade oil, and apply it every 8 hours of use
Use the appropriate technique to apply the lubricant to avoid pooling or uneven application
Check the oil level and add more as needed
Replace the oil filter regularly
Ensure that the cooling system is working correctly to maintain the optimal temperature of the machine

C. Calibration and Adjustment of Components:

Regularly check the air filter, compression rollers, and powder feeder and clean or replace them as needed.
Follow the manufacturer’s specifications for calibration and adjustment of the components, such as the punch and die alignment.
Check the tablet press machine’s pressure gauge to ensure it is within the optimal range.

Maintaining tablet press machine components is essential to prolong its lifespan and ensure efficient operation. Follow the guidelines mentioned above, and refer to the manufacturer’s manual for specific instructions to keep the machine in optimal condition. By doing so, factory owners and operators can have reliable and efficient press from their devices for years.

Working Mechanisms of Tablet Making Machine

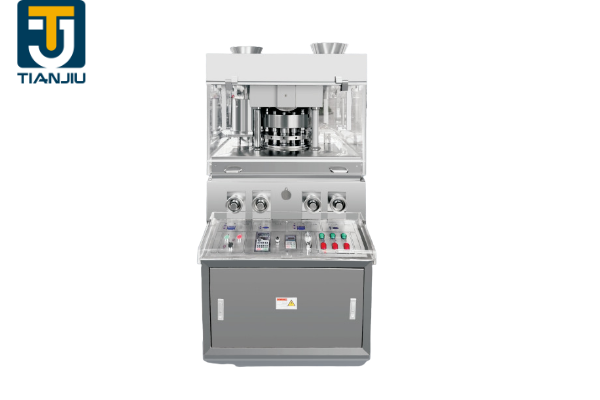

Working Mechanisms of Tablet Making Machine

Tablet making machines are used to produce tablets of different sizes and shapes. These machines use a step-by-step process that involves feeding raw materials, compressing them into a tablet, and finally ejecting the completed product.

The first step in the process is the feeding of raw materials into the hopper. The hopper is the part of the machine that holds the raw materials until they are needed. From the hopper, the feeder transfers the raw materials to the dies, which are located in the tablet compression area.

The next step in the process is compression using a punch. The compression process involves applying pressure to the raw materials to make them stick together and form a tablet. The punch compresses the materials to form a tablet of the desired size and shape. The compression rollers then follow the punch to make the tablet’s surface smooth and uniform.

Finally, the tablet is ejected from the machine using an ejection system. The ejection system removes the tablet from the press and sends it to the packaging area. Key parameters that need to be considered for the effective operation of the tablet making machine include the appropriate materials, required temperature and pressure, ideal tablet shape and size, and any other relevant considerations.

In conclusion, tablet making machines are used to produce tablets of different sizes and shapes by following a step-by-step process that involves feeding raw materials, compressing them into a tablet, and finally ejecting the completed product. The process requires careful consideration of various parameters to ensure maximum efficiency and the production of a high-quality final product.

Factors Affecting Design and Functionality

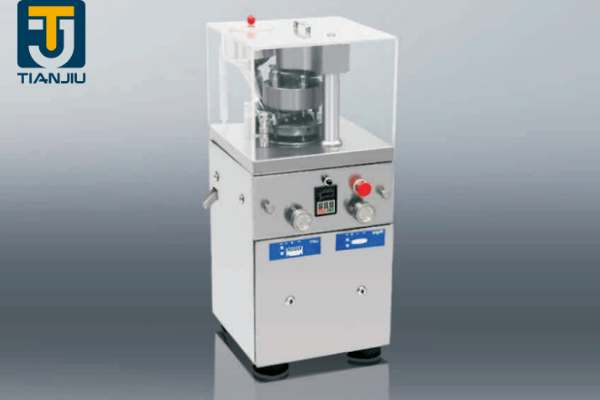

Factors Affecting Design and Functionality

The quality and consistency of tablets produced by these machines are critical factors in determining the effectiveness of the final product. Poorly designed and inefficient tablet making machines can lead to inconsistent tablet quality, resulting in ineffective medications and even harm to patients.

Factors to consider when designing and selecting tablet making machines include the type of materials used, tablet size and shape, production speed and efficiency, and ease of maintenance and cleaning.

Overall, a well-designed and functional tablet making machine is crucial in ensuring the production of high-quality and consistent tablets, leading to safe and effective medications for patients. In this article, we delve deeper into the various factors affecting tablet making machines and how they affect the quality of the final product.

Size and Capacity

The size and capacity of a tablet making machine directly affect its efficiency, productivity, and output. The larger the machine, the faster it can produce tablets, resulting in higher productivity. Additionally, a larger machine can process a larger volume of materials, reducing operational downtime.

Factors Affecting Size and Capacity:

Technology, manufacturing processes, and materials are the primary factors that affect the size and capacity of tablet making machines. Technological advancements have allowed for the development of smaller, more efficient machines. Additionally, manufacturing processes and materials have improved, allowing for the production of tablets with higher accuracy and consistency. Other variables, such as the desired tablet design and application, may also influence the size and capacity of a tablet making machine.

Examples:

Tablet making machines come in various sizes and capacities, with established manufacturers such as [company name] and [company name] offering a range of models. For instance, [specific model] provides a low- to mid-range capacity, while [specific model] offers a high-capacity option for large-scale production. Custom-made machines are also available for specialized applications, such as [specific application].

Benefits and Limitations:

While a larger machine may offer higher productivity and output, it may come with higher operational costs and require a larger space. Smaller machines offer more flexibility and are generally less expensive but may not be suitable for high-volume production. Finding the right size and capacity of a tablet making machine requires considering specific needs and requirements, such as production volume, workspace, and budget.

In conclusion, size and capacity are vital factors to consider when selecting a tablet making machine. The size and capacity affect the efficiency, productivity, and output of the machine. Factors such as technology, manufacturing processes, and materials impact the size and capacity of the machine. Examples of tablet making machines with varying sizes and capacities are readily available from established manufacturers or custom-made for specialized applications, while the benefits and limitations of different sizes and capacities should be considered to meet specific needs and requirements.

Material Used

Choosing suitable materials is crucial in the tablet making process, as it impacts the tablets’ quality, strength, and final appearance. Factors such as the type of active ingredient, tablet size, shape, and properties must be considered when selecting the right materials for tablet punching machines. In this guide, we will discuss the importance of using appropriate materials, the factors affecting material selection, and the commonly used materials in the tablet making process.

Importance of using materials appropriate to the tablet making process:

The materials used in the tablet making process play a significant role in ensuring the final product’s quality, strength, and appearance. Using inappropriate materials can result in tablets that are too weak or too hard, making them difficult to swallow or digest. It can also lead to the tablets breaking during transportation, impacting their overall effectiveness.

Factors affecting the choice of materials in tablet making machines:

When selecting materials for tablet making machines, several factors must be considered. The type of active ingredient, tablet size, shape, and properties are essential considerations. For example, for tablets containing a moisture-sensitive ingredient, materials that prevent moisture should be used. If the tablet is required to dissolve rapidly, materials that facilitate rapid dissolution should be used.

Examples of materials used in tablet making machines:

Commonly used materials in tablet making machines include binders, lubricants, fillers, and disintegrants. Binders are used to hold the ingredients in the tablet together, ensuring a cohesive final product. Lubricants reduce friction during the tablet making process, ensuring a smooth and consistent outcome.

Fillers add bulk to the tablet, allowing better control of the tablet’s size and enabling accurate dosing. Disintegrants help the tablet break down faster, allowing for good absorption of the ingredients in the stomach. Taking into consideration the factors affecting material selection together with the proper use of the materials such as binders, lubricants, fillers, and disintegrants can facilitate improved tablet production.

In summary, selecting suitable materials for the tablet making process is critical to ensure the tablets’ quality, strength, and appearance. Factors such as the type of active ingredient, tablet size, shape, and properties must be taken into account. Binders, lubricants, fillers, and disintegrants are commonly used materials that play a critical role in the tablet production process. Ensuring accurate material selection and the proper use of materials can facilitate improved tablet production, thus ensuring that consumers receive effective, high-quality medication.

Automation and Control

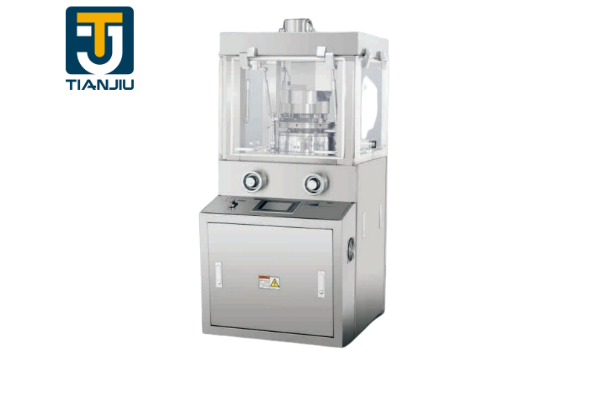

Automation and Control

Automation and control have become crucial in the manufacturing industry, and tablet making machines are no exception. The incorporation of these technologies in production lines has brought about numerous benefits, such as increased productivity, efficiency, and quality control. explores the role and significance of automation and control in tablet making machines, identifying the major factors that influence their implementation and showcasing examples of machines with advanced automation and control features that have transformed the manufacturing process.

Importance of Automation and Control in Tablet Making Machines:

The integration of automation and control in tablet making machines has revolutionized the manufacturing process. These technologies have led to increased efficiency, consistency, and precision in production, resulting in higher productivity and quality products. Automated operations such as ingredient mixing, tablet compression, and coating significantly reduce the number of manual processes required, minimizes human error, and increase machine speed and accuracy. The use of control systems in tablet making machines ensures that precise parameters, such as the amount of active ingredient and tablet weight, are achieved, enhancing the product’s quality and ensuring compliance with industry regulations.

Factors Affecting Automation and Control:

Several factors influence the implementation of automation and control in tablet making machines. Firstly, the capital investment required for purchasing and installing these technologies can be significant, making it critical to carry out a cost-benefit analysis. Secondly, the complexity of the manufacturing process and product design affects the adaptation of automation technology. Some processes may require particular handling or packaging processes that machines can’t accommodate, or products that need special attention and human expertise; therefore, while technology offers a broad range of possibilities, some manual labor may still be necessary. Additionally, proper infrastructure and maintenance need to be put in place to ensure uninterrupted operation.

Examples of Tablet Making Machines with Advanced Automation and Control Features:

There are numerous tablet making machines in the market that have advanced automation and control features. Examples include the Romaco Kilian KTP 590X, which integrates 3D camera technology to ensure precise tablet dimensions, and the Bosch GKF 720, which offers a wide range of automation options for various tablet production phases, including powder feeding, compression, and inspection. The Manesty Xpress 700 is another tablet-making machine with advanced control and automation features, including automatic process adjustments, real-time monitoring, and fault diagnosis.

Automation and control technologies have significantly transformed the manufacturing process of tablet making machines, resulting in increased productivity, efficiency, and quality control. While factors such as cost, complexity, and infrastructure impact their implementation, the abundance of advanced machines with automation and control technologies offers vast possibilities for the future of the tablet manufacturing industry.

Maintenance and Serviceability

Ensuring proper maintenance and serviceability of tablet making machines is crucial for their effective and efficient operation. Neglecting these factors can lead to equipment failure, costly downtimes, and compromised product quality. In this guide, we will discuss the importance of maintenance and serviceability in tablet making machines, factors that affect these aspects, and examples of machines designed for easy maintenance and serviceability.

Importance of maintenance and serviceability in tablet making machines:

Maintaining and servicing tablet making machines regularly enhances their longevity and performance. Properly maintained machines operate at peak efficiency, ensure consistency in tablet quality, and avoid unexpected downtime. The cost of maintenance and service should be viewed as an investment instead of an expense, as it contributes significantly to the reduction of overall production costs.

Factors affecting maintenance and serviceability:

Various environmental, ergonomic, and operational factors can affect maintenance and serviceability. Environmental factors such as temperature, humidity, dust, and vibration can cause damage to the machine’s components over time. Ergonomic factors such as ease of access to the machine’s components, controls, and maintenance areas can impact the speed and efficiency of maintenance work. Operational factors such as the production schedule, machine workload, and operator skills can affect the wear and tear of the machine’s components.

Examples of tablet making machines designed for easy maintenance and serviceability:

Tianjiu, a leading manufacturer of tablet making machines, offers machines with easy-to-remove parts and improved access to maintenance areas. Their machines’ innovative design also allows cleaning solutions to reach inaccessible parts easily, simplifying the cleaning process. Manesty, another prominent manufacturer, incorporates ergonomic design elements and uses modular assembly, making their machines’ maintenance and service much more manageable.

Tips and techniques for conducting proper maintenance and service:

Firstly, ensure compliance with the manufacturer’s recommendations on maintenance and service procedures. Perform regular cleaning and timely replacement of worn-out parts. It’s vital to keep the machine’s workspace free from dust and other debris, mainly if it’s in a high-dust environment. Check for any unusual noise or vibrations regularly, and address them immediately. Regularly lubricate moving parts, and keep electrical terminals clean and tight.

Investing in proper maintenance and serviceability is critical when dealing with tablet making machines. Keeping them well-maintained and serviced can prevent any costly downtimes, minimize production costs and ensure consistent product quality. Always ensure that regular cleaning, repair, and scheduled replacements are carried out as recommended by the manufacturer to extend the equipment’s operational life.
