Tablet Press Machine Information
We will explore the different types of tablet press machines, their parts, and how they work so you can better understand the manufacturing process. Additionally, this information will prove invaluable if you want to purchase or use a tablet press machine.
Tablet press machines are mechanical devices used to compress powders into tablets, with a history dating back to the 1800s and various types available today.
The design and functionality of tablet press machines are influenced by their components, working mechanisms, and various factors.
Maximizing Tablet Making Machine Efficiency: Top Pre-Production, Operation, and Maintenance Tips
Tablet press machines compress and form powdered raw materials into uniform tablets for pharmaceuticals, cosmetics, and chemicals.
The global market for tablet press machines presents growth opportunities driven by the latest trends and innovations, with key manufacturers and vendors shaping market trends.
Comparing tablet press machines and capsule filling machines, as well as single-station and rotary tablet press machines.
Tablet Press Machine for Sale
Powder Tablet Press Machine
The Powder Tablet Press Machine is suitable for small batch...
Read More
High Speed Rotary Tablet Press Machine With Good Price
The High Speed Rotary Tablet Press Machine is the perfect...
Read More
High Production Rotary Tablet Press Machine
The High Production Rotary Tablet Press Machine is a powerful...
Read MorePart - 1：Overview of tablet making machine
If you’re curious about tablet press machines, Tianjiu has you covered. Discover what they are, their history, and the different types available today.

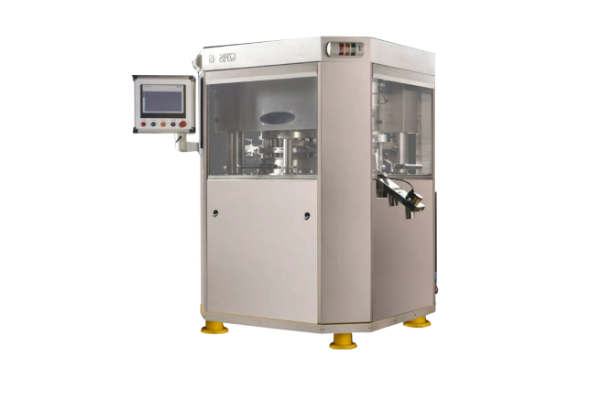

Definition of Tablet Press Machine
A tablet press machine is a mechanical device commonly used in the pharmaceutical industry. Its primary purpose is to compress powders into tablets of uniform size and weight.
The main components of a typical tablet press machine include the hopper or feeder, which houses the powder that will be compressed, and the die table, which is responsible for shaping the tablet. Additionally, the machine has a set of punches and dies that apply pressure to the powder and shape it into a tablet.
History of Tablet Press Machine
• William Brockedon invented the tablet press machine in 1843, revolutionizing the production of tablets with a metal die containing cavities of specific sizes.
• In 1875, Col. I.L. Ermatinger invented the rotary tablet press machine with the capacity to produce thousands of tablets per hour.
• William H. Warner created the first automatic tablet press machine in 1903, featuring a hopper that fed mixtures into dies and a kicker that ejected finished tablets.
• This invention had an immense impact on medicine production, as it enabled mass production with various types of machines like single punch presses and hydraulic presses.
• Future technological advancements will focus on improving production efficiency and increasing speed while maintaining quality and safety standards.
Types of Tablet Compression Machine
| Machine Name | Description/Features | Main Usage/Applications | Capacity | Key Benefits | Price Range |
|---|---|---|---|---|---|
| Single Punch Tablet Press | This machine is small in size and is designed for the production of small quantities of tablets. The single punch tablet press is easy to use and maintain. It has a lower output capacity of around 6,000 tablets per hour. | Suitable for small scale production and lab use | 6,000 tablets/hour | Cost-effective, simple to operate, and can produce tablets of different shapes and sizes | $2,000 - $5,000 |
| Rotary Tablet Press | This type of machine is suitable for medium to large-scale production, producing up to 1,000,000 tablets per hour. It has a higher output capacity, and it can produce tablets of different shapes and sizes. It is versatile and can be used for pressing different kinds of powders. | Used for medium and large scale production | 25,000 to 200,000 tablets/hour | High output efficiency, consistent tablet weight and quality, versatility to handle different powders and granules | $20,000 - $150,000 |
| High-Speed Tablet Press | The high-speed tablet press is top of the line. It provides maximum efficiency by producing up to 1.8 million tablets per hour. It has a compact design, and it is easy to use and clean. | Used for large-scale production of standard shaped tablets. | 300,000 to 1,800,000 tablets/hour | High output capacity, maximum efficiency, excellent quality control, and minimal maintenance | $150,000 - $500,000 |
| Bilayer Tablet Press | This machine is designed specifically for producing bilayer tablets that contain two different ingredients. It has two primary compression stations which allow for a smooth transition from layer to layer. | Used for producing bilayer tablets | 300,000 to 1,000,000 tablets/hour | Cost-effective, reduces total production time, perfect for small and medium enterprises (SMEs) | $30,000 - $100,000 |
| Powder Tablet Press | The powder tablet press is specifically designed for pressing powder into tablet form. The machine has a special powder feeder which ensures that the powder is distributed evenly during compression. | Used for producing tablets from powder materials | 80,000 to150,000 tablets/hour | Time-saving, suitable for small-scale production, offers high levels of accuracy in terms of tablet weight and thickness | $5,000 - $30,000 |
Note: Prices are approximate and may vary depending on the manufacturer, model, and location. Get more information about Rotary Tablet Machines and Single Punch Tablet Machines.
Part - 2 ：Design and Functionality
Discover the secrets behind the design and functionality of tablet press machines! Learn about the key components, working mechanisms, and countless factors that shape their performance. Our detailed answers will help you unravel the mysteries of these essential pieces of equipment.
Components of Tablet Making Machine
| Category | Component | Description | Importance |
|---|---|---|---|
| Mechanical | Hopper | A container that stores the raw materials to be used in the manufacturing process. | The hopper is an important component of the tablet making machine as it stores the necessary raw materials for the manufacturing process. |
| Mechanical | Feeder | This component dispenses the raw materials from the hopper to a set of rotating punches. | The feeder is an essential component of the tablet making machine as it dispenses the raw materials from the hopper to a set of rotating punches. |
| Mechanical | Punches | These are tools that are used to compress the raw materials and form them into tablet shapes. | Punches are critical mechanical components of the tablet making machine as they are used to compress the raw materials and form them into tablet shapes. |
| Electrical | Motors | These provide the necessary power to the mechanical components of the manufacturing system. | Motors are essential electrical components of the tablet making machine as they provide the necessary power to the mechanical components of the manufacturing system. |
| Electrical | Sensors | These detect physical or chemical changes and can trigger a response from the control system. | Sensors are critical electrical components of the tablet making machine as they detect physical or chemical changes and can trigger a response from the control system accordingly. |
| Control System | Programmable Logic Controllers (PLCs) | These are the "brains" of the manufacturing system and control the entire process. | The PLC is an integral component of the tablet making machine as it forms the control system's "brain" and regulates the entire manufacturing process. |
| Control System | Human-Machine Interface (HMI) | A graphical interface that allows operators to monitor and control the manufacturing process. | HMI is a crucial component of the tablet making machine as it provides the graphical interface that allows operators to monitor and control the manufacturing process. |
| Control System | Supervisory Control and Data Acquisition (SCADA) System | A centralized system that monitors and controls the manufacturing process in real-time. | SCADA is a critical component of the tablet making machine as it provides a centralized system that monitors and controls the manufacturing process in real-time. |
The mechanical components of the tablet making machine include a hopper, feeder, and punches. The hopper stores the raw materials needed for the manufacturing process, while the feeder dispenses these materials to the punches, which compress them into the desired tablet shape.
The electrical components of the tablet making machine consist of motors and sensors. Motors provide the necessary power to the mechanical components, while sensors detect any physical or chemical changes that need to be addressed by the control system.
The control system of the tablet making machine is made up of Programmable Logic Controllers (PLCs), Human-Machine Interface (HMI) and Supervisory Control and Data Acquisition (SCADA) system. PLCs serve as the “brains” of the machine and regulate the entire manufacturing process. The HMI provides a graphical interface for operators to monitor and control the machine,
Part - 3：Operation and Maintenance
Are you looking to maximize the efficiency of your Tianjiu tablet-making machine? Pre-production, operation, and maintenance strategies are essential in achieving that goal. We’ll cover everything from checking safety protocols to optimizing your workflow processes. Read on for our expert tips and see how properly running a Tianjiu tablet-making machine can increase production reliability – resulting in faster turnarounds and improved cost efficiency!
Tablet Press Machine Pre-Production Preparation Procedures
| Step | Description | Best Practices |
|---|---|---|
| 1 | Safety Precautions | Ensure all employees wear protective gear, including gloves and safety glasses. Clearly mark hazardous areas and emergency exits. Conduct regular safety inspections and hazard assessments. |
| 2 | Material Preparation | Gather all necessary raw materials, including active ingredients, excipients, and binders. Ensure materials are properly labeled and stored in a clean and dry environment. Perform material testing and quality control checks before use. |
| 3 | Tooling Set-Up | Select appropriate tooling for the tablet design and size. Clean and inspect all tooling before use. Ensure tooling is properly aligned and tightened. |
| 4 | Machine Calibration | Calibrate the tablet press machine to ensure accurate dosing, compression force, and tablet weight. Conduct regular maintenance and calibration checks to ensure consistent performance. |
| 5 | Employee Training Documentation | Provide comprehensive training to all employees operating the tablet press machine. Document all training sessions and maintain training records. Ensure employees understand safety protocols, quality control procedures, and machine operation guidelines. |
By following these pre-production preparation procedures, you can ensure that your tablet manufacturing process is safe, efficient, and effective. Regularly review and update these procedures to maintain the highest standards of product quality and workplace safety.
Tablet Press Machine Operation Procedures
Section 1: Machine Preparation
| Step | Description |
|---|---|
| 1 | Inspect and clean the machine before use to ensure it is free of debris, residue, or foreign objects. |
| 2 | Ensure that all machine guards and safety devices are in place and functional before operating the machine. |
| 3 | Verify that all machine components, including feeders, hoppers, and tooling, are properly installed and secured. |
| 4 | Ensure that all electrical connections and power supply requirements are met before turning on the machine. |
| 5 | Ensure that the machine is properly lubricated and oiled to prevent damage or malfunction during operation. |
Section 2: Machine Setup and Configuration
| Step | Description |
|---|---|
| 1 | Select appropriate tooling and change parts for the desired tablet design and size. |
| 2 | Configure the machine settings, including tablet weight, thickness, hardness, and compression force, as per the product specifications. |
| 3 | Adjust the feeder and hopper settings to ensure consistent material flow and dosing. |
| 4 | Perform trial runs and quality control checks to ensure the machine is set up and configured correctly. |
Section 3: Machine Operation
| Step | Description |
|---|---|
| 1 | Start the machine and monitor the tablet production process, including material feeding, compression, and ejection. |
| 2 | Continuously check and adjust the machine settings and performance to ensure consistent quality and production targets. |
| 3 | Perform regular tablet sampling and testing to ensure product quality and compliance with regulatory standards. |
| 4 | Monitor the machine's operating conditions, including temperature, humidity, and vibration, and adjust as necessary. |
| 5 | Stop the machine and troubleshoot any issues that arise, such as jammed tooling or material blockages, to prevent damage or downtime. |
Section 4: Cleaning and Maintenance
| Step | Description |
|---|---|
| 1 | Stop the machine and disconnect the power supply before cleaning or performing maintenance. |
| 2 | Remove all tooling, hopper, and feeder components for cleaning and sanitation. |
| 3 | Use appropriate cleaning solutions and equipment, such as brushes or compressed air, to clean the machine thoroughly. |
| 4 | Perform regular maintenance checks, including lubrication, tightening, and replacement of worn parts, to prevent equipment failure and prolong the machine's lifespan. |
| 5 | Document all cleaning and maintenance activities and ensure compliance with regulatory and safety standards. |
By following these tablet press machine operation procedures, you can ensure efficient and safe operation while producing high-quality tablets. Remember to follow all safety protocols and manufacturer’s instructions when operating the machine. Regularly review and update these procedures to ensure optimal performance and product quality.
Tablet Press Machine Maintenance Techniques
| Maintenance techniques | Action-oriented steps | Tips/Solutions |
|---|---|---|
| General Maintenance | Clean machine regularly | Use a soft-bristled brush to dislodge dirt and apply compressed air to remove debris from the machine. Wear protective gear to avoid inhaling dust particles. |
| Lubricate machine parts | Apply lubricant to bearings, punches, rollers, and tablet compression tracks to reduce friction and enhance the smooth operation of the machine. Use lubricants recommended by the manufacturer. | |
| Check and replace worn-out parts | Regular inspections are essential. Replace parts that show increased wear to avoid costly repairs. | |
| Recalibrate the machine | Adjust settings to ensure tablet weight meets the specified range. | |
| Specific Maintenance | Punch and die maintenance | Clean, grease, and inspect for wear and tear regularly. Calibrate punch and die for maximum tablet compression and quality. |
| Compression system maintenance | Inspect, clean, and maintain the compression system to keep the machine working correctly. | |
| Feeder system maintenance | Inspect, clear, and calibrate the tablet feeder system for consistent tablet quality. | |
| Common Problems & Solutions | Tablet sticking | Insufficient lubrication is the leading cause. Clean and lubricate using the recommended lubricants. Replace damaged or worn punches and dies. |
| Tablet weight variation | Calibrate the machine regularly. Replace damaged or worn compression rollers. | |
| Tablet capping | Check for insufficient vacuum pressure in the hopper. Clear any obstructions and check transport systems for proper operation. | |
| Follow Manufacturer Guidelines | Review maintenance guidelines | Check the manufacturer's website regularly for new recommendations and guidelines. |
| Perform specific maintenance techniques. | Always consult the manufacturer's instructions before performing maintenance procedures. |
Remember to always follow the manufacturer’s guidelines when performing maintenance techniques to ensure optimal performance and longevity of the tablet press machine.
Part - 4：Applications of tablet press machine
Our tablet press machines effectively shape powdered raw materials into standardized tablets for use in various industries, including pharmaceuticals, cosmetics, and chemicals.
Tablet Compression Machine for the Pharmaceuticals
• Tablet presses are essential in pharmaceutical manufacturing to compress powdered raw materials and create tablets of precise weight and size.
• Quality control measures are in place to ensure that tablets meet all necessary specifications for size, shape, weight, and hardness.
• Different types of tablet presses are available depending on the product requirements; multi-layer presses may be necessary for certain products.
• Tablet presses offer several benefits, such as greater precision in weight and size, faster and more efficient output, and a higher quality product with less variability.
| Topic | Description |
|---|---|
| Machine Type | Rotary Tablet Press Machine |
| Use | Pharmaceuticals Industry |
| Capacity | Up to 400,000 tablets per hour |
| Tablet Shape | Round, Oval, Capsule, Oblong, Custom Shapes |
| Tablet Size | 3-25 mm diameter |
| Material | Stainless Steel |
| Power Source | Electric |
| Power Consumption | 3 kW |
| Control System | Programmable Logic Controller (PLC) |
| Operation | Fully automatic |
| Feeding System | Gravity or Forced Feeding |
| Compression Force | Up to 100 kN |
| Tooling | Interchangeable |
| Die Filling System | Turret or Die Table |
| Lubrication System | Automatic |
| Benefits | High productivity, Consistency, Better product quality, Reduced labor costs, Greater precision, Flexibility in tablet shapes and sizes |
Pill Press Machine for the Cosmetics
| Feature | Description |
|---|---|
| Machine Type | Automatic Tablet Press Machine |
| Use | Cosmetic Industry |
| Capacity | 500-600 tablets per minute |
| Tablet Shape | Round, Oval, Capsule, Oblong |
| Tablet Size | 5-16 mm diameter |
| Material | Stainless Steel |
| Power Source | Electric |
| Power Consumption | 3 kW |
| Control System | Touch Screen |
| Operation | Fully automatic |
| Benefits | Higher efficiency, Consistency, Better product quality, Less labor-intensive, Greater precision, Cost savings |
Tablet Compression Machine Application for Chemicals
| Topic | Description |
|---|---|
| Machine Type | Rotary Tablet Press Machine |
| Use | Chemical Production |
| Capacity | Up to 1,000,000 tablets per hour |
| Tablet Shape | Round, Oval, Capsule, Oblong, Custom Shapes |
| Tablet Size | 3-25 mm diameter |
| Material | Stainless Steel |
| Power Source | Electric |
| Power Consumption | 3 kW |
| Control System | Programmable Logic Controller (PLC) |
| Operation | Fully automatic |
| Feeding System | Gravity or Forced Feeding |
| Compression Force | Up to 200 kN |
| Tooling | Interchangeable |
| Die Filling System | Turret or Die Table |
| Lubrication System | Automatic |
| Benefits | High productivity, Consistency, Better product quality, Reduced labor costs, Greater precision, Flexibility in tablet shapes and sizes |
Tablet Press Machine for Sale
Automatic Rotary Continuous Tablet Press
The Automatic Rotary Continuous Tablet Press is an essential machine...
Read More
Rotary Effervescent Tablet Pressmachine
The Rotary Effervescent Tablet Press Machine is an essential tool...
Read More
High Speed Rotary Tablet Press Machine
The High Speed Rotary Tablet Press Machine is a versatile...
Read MorePart - 5：Market Trends and Opportunities
The tablet press machine market is ripe for growth, thanks to emerging trends and innovative technologies. Key manufacturers and vendors are leading the way and driving market trends. Don’t miss out on this promising opportunity in the global market.
Overview Global Market for Tablet Press Machine
| Topic | Description |
|---|---|
| History and Development | Invented in 1843, the tablet press has since undergone several technological advancements to produce high-quality tablets. |
| Importance of the Global Market | The global market for tablet press machines is crucial as it provides pharmaceutical, cosmetic, and chemical manufacturers with the necessary equipment to produce uniform and high-quality tablets efficiently. |
| Market Size and Trends | The market size for tablet press machines was valued at USD 2.8 billion in 2020, with an expected growth rate of 4.8% from 2021 to 2028, driven by technological advancements and increasing demand for generic drugs. |
| Regional Analysis | The Asia Pacific market accounted for the largest share of 40.9% in 2020, followed by North America and Europe. The Asia Pacific market is expected to grow at the highest CAGR of 5.6% from 2021 to 2028. |
| End-User Analysis | The pharmaceutical industry accounted for the largest share of 57.8% in 2020, followed by cosmetics and chemicals. Rising demand for generic drugs and increasing focus on research and development in the pharmaceutical industry are driving market growth. |
| Competitive Landscape | The market is highly competitive, with key players such as Fette Compacting, Korsch AG, IDEX MPT Inc., and HATA Industries. Collaborations, partnerships and acquisitions are commonly used strategies among market players in seeking growth opportunities. |
| Future Outlook | The market is expected to witness significant growth due to rising demand for generic drugs, emerging economies, technological advancements, increasing focus on research and development, and increasing adoption of automation. |
| Conclusion | The global market for tablet press machines is poised for continued growth, driven by increasing demand from the pharmaceutical, cosmetic and chemical industries, technological advancements, and expanding research and development activities. |
Part - 6：Comparative Analysis
Explore the differences between tablet press and capsule filling machines, and the advantages of single-station versus rotary tablet presses. A methodical and precise analysis of these key factors will help you make an informed decision for your manufacturing needs.
Tablet Press Machine Vs. Capsule Filling Machine
| Features | Tablet Press Machine | Capsule Filling Machine |
|---|---|---|
| Mode of Operation | Compresses powder into tablets using punches and dies | Fills pre-made capsules with powder |
| Spindle Speed | Typically 10-100 RPM | Typically 100-300 RPM |
| Production Capacity | 500-1000 tablets/minute | 2000-5000 capsules/minute |
| Product Type Produced | Tablets | Capsules |
| Cost | High | Moderate to high |
| Pros | - High production capacity | - Can fill different capsule sizes and shapes |
| - Consistent tablet weight and size | - Can fill various types of powders | |
| - Lower risk of cross-contamination | - Can be easier to clean and maintain | |
| Cons | - Limited flexibility in product size and shape | - Higher initial cost |
| - Requires more space and power | - Risk of capsule breakage during filling | |
| - Higher upfront cost for tooling | - May require additional equipment for printing and polishing |
Note: The information provided in this table is for general reference only and may vary based on specific models and manufacturers.
When it comes to producing tablets or filling capsules, choosing the suitable machine for your needs is essential. The tablet press machine produces consistently weighted and sized tablets with high production capacity. Meanwhile, the capsule filling machine is ideal for serving a variety of powders, as well as different sizes and shapes of capsules. However, the capsule filling machine has a higher initial cost and a risk of breakage during filling. Before choosing a device, carefully consider your production requirements and budget.
Single-Station Vs. Rotary Tablet Press Machine
| Features | Single-Station Tablet Press Machine | Rotary Tablet Press Machine |
|---|---|---|
| Speed | Produces up to 10,000 tablets per hour | Produces up to 1 million tablets per hour |
| Efficiency | Less efficient due to manual operation | More efficient due to automation |
| Durability | Less durable due to simple mechanism | More durable due to complex mechanism |
| Cost | Lower initial investment cost | Higher initial investment cost |
| Maintenance | Requires less maintenance due to simple mechanism | Requires more maintenance due to complex mechanism |
| Flexibility | Less flexible, suitable for producing only one type of tablet at a time | More flexible, capable of producing multiple types of tablets at the same time |
| Changeover Time | Quick changeover time, typically less than 30 minutes | Longer changeover time, typically more than 1 hour |
| Floor Space | Requires less floor space | Requires more floor space |
