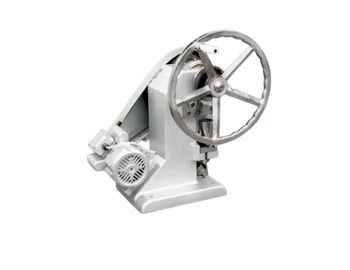

Part - 1：Overview of single punch tablet compression machine
Uncover the world of Single Punch Tablet Machines: from their unique features to their prominent role in producing top-quality pharmaceuticals. Join us as we delve into the machine’s functions and their significance in the industry.
What is a Single Punch Tablet Machine?
A single punch tablet machine is used to create tablets of various sizes and shapes in the pharmaceutical, chemical, and food industries. It compresses powder or granular materials into a tablet form using a single punch mechanism. This meticulous machine requires precision in every step of the process, from measuring the correct amount of material to adjusting the pressure and speed of the compression. The result is a well-formed and consistent tablet that can be quickly taken by patients or used in other industries. The single-punch tablet machine is a valuable asset to any manufacturer who values product quality and accuracy.
How Does a Single Punch Tablet Machine Work?
A single punch tablet machine, also known as a single station tablet press, works by compressing powdered or granulated materials into tablet form. The machine consists of a hopper, which holds the material to be compressed, and a die that shapes the tablet. The powder is fed into the cavity of the die, and a punch, which is a rod with a shaped end, is used to compress the powder with high force. The pressure exerted by the punch forms the tablet with the desired shape and size. After the tablet is formed, the punch is lifted to eject the tablet from the die, and the process is repeated for the next tablet. Overall, the operation of a single punch tablet machine is a methodical and precise process that can produce a wide range of tablets efficiently and accurately.
The Importance of a Single Punch Tablet Machine
In pharmaceutical manufacturing, precision is of utmost importance. Every detail, from dosage to the shape and size of the tablet, requires meticulous attention to ensure the safety and efficacy of the medicine. This is where single punch tablet machines play a crucial role. These machines are designed to produce one tablet at a time with consistent quality, allowing for exact dosage control. The methodical and precise nature of the machine ensures that each tablet is uniform in shape and size, eliminating the risk of dosing errors. The importance of a single punch tablet machine cannot be overstated in the manufacturing of pharmaceuticals. It is a critical piece of equipment that guarantees the quality and effectiveness of medicine for patients around the world.
Part - 2 ：Types of Single Punch Tablet Machines
Unveiling the Varieties of Single Punch Tablet Machines: A Comprehensive Overview of Manual, Electric, and the Single Punch Tablet Press.
Manual Single Punch Tablet Machines
Manual Single Punch Tablet Machines are small, portable devices that have been used for centuries in the pharmaceutical industry to produce tablets. They are designed to compress powdered or granulated materials into a fixed tableting size and shape with a single punch stroke. These machines utilize a simple operating mechanism that involves placing the material into a die cavity and rotating a hand wheel in order to compress the material into a tablet. One of the major advantages of using manual single punch tablet machines is their affordability, making them accessible to small and medium-sized businesses. If you are looking for a reliable and cost-effective method of making tablets, then a manual single punch tablet machine could be the perfect solution for your needs.
Manual Single Punch Tablet Machines: Product Comparison
Manual single punch tablet machines are commonly used in pharmaceutical, chemical, and food industries to compress powdered materials into tablets of a specific size and shape. Below is a comparison table of various manual single punch tablet machines offered by different brands, including Tianjiu, which provides this capability.
| Brand | Model | Advantages | Working Principle | Production Capacity | Size (mm) | Weight (kg) | Disadvantages | Unique Features |
|---|---|---|---|---|---|---|---|---|
| Tianjiu | TJ-MSP-01 | Affordable and easy to operate | Single punch applied by hand | 10-20 tablets per minute | 175 x 220 x 400 | 10 | Uneven tablet sizes, limited production capacity | Removable punches for quick changeover |
| Tianjiu | TJ-MSP-02 | Accurate and reliable tablet production | Single punch applied by hand | 15-30 tablets per minute | 210 x 250 x 400 | 12 | Limited range of tablet sizes, small hopper capacity | Adjustable tablet thickness and depth |
| Tianjiu | TJ-MSP-03 | Efficient and high production capacity | Single punch applied by hand | 30-50 tablets per minute | 300 x 250 x 400 | 15 | Requires professional training to operate effectively, high initial cost | Interchangeable punches of various sizes and shapes |
| Tianjiu | TJ-MSP-04 | Versatile, can handle a variety of materials | Single punch applied by hand with spring-loaded | 15-25 tablets per minute | 240 x 300 x 450 | 10 | Poor tablet uniformity, not suitable for high-volume production | Adjustable punch pressure for better control over tablet quality |
| Tianjiu | TJ-MSP-05 | Ideal for R&D facilities or small-scale tablet production | Single punch applied by hand | 3-12 tablets per minute | 120 x 150 x 350 | 8 | Limited production capacity, requires frequent cleaning and maintenance | Compact design, easy to operate and maintain, adjustable tablet depth |
| Fette | P1000 | High production output, reliable tablet quality | Dual punches, rotary table | Up to 303,000 tablets/hour | 1,700 x 1,100 x 1,900 | 2,500 | Large physical footprint, high cost, requires frequent maintenance | Touch screen controls, automatic tablet weight control system |
| Korsch | EK0 | Versatile, compact design, stable working conditions | Single punch with force adjustment screw | Up to 3,600 tablets/hour | 710 x 1000 x 1000 | 170 | Limited range of tablet sizes, not suitable for high-volume production | Designed for use in R&D and laboratory settings |
| IMA | Prexima | High production speed, accurate tablet weight control | Dual punches, rotary table | Up to 400,000 tablets/hour | 2,500 x 2,500 x 2,200 | 5,500 | Large physical footprint, high cost, requires frequent maintenance | Advanced weight control system, multi-layer turrets for increased production capacity |
Note: Manual single punch tablet machines are available from a variety of brands, each offering unique advantages and features. It is recommended to conduct thorough research and consider specific production requirements before making a purchase decision.

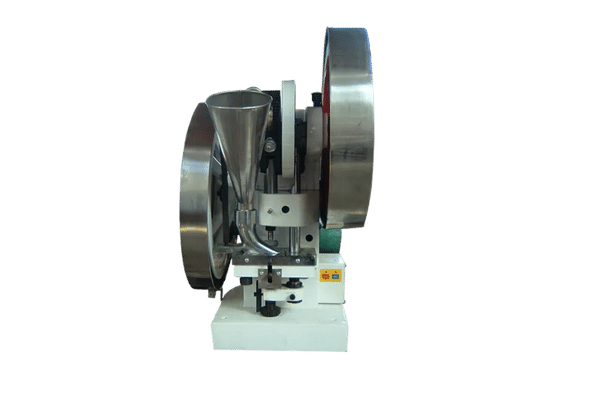

Electric Single Punch Tablet Machines
Electric Single Punch Tablet Machines are innovative devices used for the manufacturing of tablets. These machines are simple, yet efficient, and are designed to produce tablets of various sizes and shapes. Unlike traditional tablet machines, whose output is limited by their size and weight, single punch machines are capable of producing a wide variety of tablets with ease. The process is straightforward and involves placing the material to be compressed into the hopper, adjusting the size and weight of the tablets to desired specifications, and then starting the machine. The electric single punch technology makes the manufacturing process quick and efficient, which further makes it a popular choice in the pharmaceutical and chemical industries. It has proven to be a game-changer in the world of tablet manufacturing, and continues to be used for its convenience and accuracy.
Electric Single Punch Tablet Machines Overview
Electric single punch tablet machines are compact and robust pieces of equipment designed for the compression of tablets from powder or granular materials. These machines are used in pharmaceuticals, chemicals, and other industries to produce consistent and precise tablets of different shapes and sizes.
| Name of Machine | Applications | Functionality | Advantages | Products/Industries Used For | Technical Specifications/Features |
|---|---|---|---|---|---|
| EK-103 | Pharmaceutical, chemical, and food industries | Electric motor-driven with single punch applied by hand | High level of control over compression force, consistent tablet weight and thickness | Medication tablets, nutritional supplements, candy-making | Maximum tablet diameter: 25mm; Maximum tablet thickness: 20mm; Production capacity: 2,000-3,000 tablets/hour; Power: 220V, 0.37KW, 50Hz; Weight: 48kg |
| YK-26 | Pharmaceutical, chemical, and food industries | Electric motor-driven with adjustable punch pressure and speed control | High level of accuracy and automation, can produce tablets at a faster rate | Aspirin tablets, fragrant tablets, buttons, camphor balls, catalysts | Maximum tablet diameter: 25mm; Maximum tablet thickness: 20mm; Production capacity: 3,000-4,000 tablets/hour; Power: 220V, 0.37KW, 50Hz; Weight: 70kg |
| TJ-MSP-02 | Pharmaceutical, chemical, and food industries | Electric motor-driven with adjustable tablet thickness and depth control | Reliable tablet quality, easy to operate, produces tablets at a faster rate | Medication tablets, nutritional supplements | Maximum tablet diameter: 25mm; Maximum tablet thickness: 15mm; Production capacity: 1,500 tablets/hour; Power: 220V, 0.5KW, 50Hz; Weight: 70kg |
| ZPW-4 | Pharmaceutical and chemical industries | Electric motor-driven with adjustable punch pressure and speed control | Produces tablets at a faster rate, automated lubricant filling system, touch screen controls | Aspirin, vitamin and herbal tablets, cleaning tablets, and pet medicine tablets | Maximum tablet diameter: 30mm; Maximum tablet thickness: 22mm; Production capacity: 3,000-4,000 tablets/hour; Power: 220V, 50Hz, 1.5KW; Weight: 480kg |
| ZP45A | Pharmaceutical and chemical industries | Electric motor-driven with adjustable punch pressure and speed control | High-precision accuracy, large tablet capacity, user-friendly design, produces tablets at a faster rate | Medication tablets, chemicals, and food industries | Maximum tablet diameter: 12mm; Maximum tablet thickness: 6mm; Production capacity: 35-45 tablets/minute; Power: 220V, 50Hz, 0.55KW; Weight: 60kg |
| ZP15D | Food and chemical industries | Electric motor-driven with adjustable punch pressure and speed control | High-quality and uniform tablets, large production capacity, easy to operate, produces tablets at a faster rate | Effervescent tablets and mints, candies, detergents, and pet tablets | Maximum tablet diameter: 15mm; Maximum tablet thickness: 9.5mm; Production capacity: 15,000-28,000 tablets/hour; Power: 380V; Weight: 1200kg |
Note: Electric single punch tablet machines offer several advantages, including automation and control of pressure for producing uniform tablets at a fast rate while requiring less manual force. It is important to consider maximum tablet diameter and thickness, production capacity, and power supply when selecting an electric single punch tablet machine. These machines must be properly maintained to prevent contamination and ensure accuracy.
Single Punch Tablet Press
Single punch tablet press is a mechanical device that is used to produce tablets in the pharmaceutical and chemical industries. This machine is designed to compress powder or granules into tablets of uniform weight and size. The process is methodical and precise, as every tablet that is produced must meet strict standards. The single punch tablet press works by placing the powder or granules into a die plate, which is then compressed using a single punch. This punch operates on a hydraulic system, with the pressure being controlled to ensure the tablet is formed correctly. Every single punch tablet press is designed to meet specific needs, with variations on the size and shape of the tablet as well as the level of compressive force applied. The result is a reliable and efficient production process that delivers the highest quality tablets for the end-user.
Single Punch Tablet Press Overview
The Single Punch Tablet Press is a piece of equipment that is widely used in the pharmaceutical and chemical industries for compressing powder or other granular materials into precise and consistent tablets. Here is a table summarizing critical information about this equipment.
| Product Name | Brand | Specifications | Material Handling Capability | Production Rate | Dimensions (mm) |
|---|---|---|---|---|---|
| TDP-1.5 Tablet Press | LFA Machines | Maximum compression pressure: 15kn; Maximum tablet diameter: 12mm; Maximum filling depth: 12mm; Weight: 38kg | Granules, powder | 600 to 2400 tablets/hour | 580 x 450 x 750 (L x W x H) |
| TDP-0 Tablet Press | LFA Machines | Maximum compression pressure: 15kn; Maximum tablet diameter: 12mm; Maximum filling depth: 12mm; Weight: 38kg | Granules, powder | 600 to 2400 tablets/hour | 470 x 350 x 645 (L x W x H) |
| ZP17D Tablet Press | RICHMECH | Maximum compression pressure: 40kn; Maximum tablet diameter: 17mm; Maximum filling depth: 15mm; Weight: 180kg | Pharmaceuticals, Chemicals | 10,000 to 14,000 tablets/hour | 580 x 500 x 950 (L x W x H) |
| ZP35 Tablet Press | RICHMECH | Maximum compression pressure: 80kn; Maximum tablet diameter: 35mm; Maximum filling depth: 25mm; Weight: 500kg | Pharmaceuticals, Chemicals | 2,000 to 3,000 tablets/hour | 1140 x 980 x 1830 (L x W x H) |
| THP-10 Tablet Press | AMT | Maximum compression pressure: 10kn; Maximum tablet diameter: 22mm; Maximum filling depth: 16mm; Weight: 30kg | Granules, Powder, Agrochemicals | 4,000 tablets/hour | 420 x 300 x 620 (L x W x H) |
| THP-4 Tablet Press | AMT | Maximum compression pressure: 4kn; Maximum tablet diameter: 12mm; Maximum filling depth: 7mm; Weight: 13kg | Granules, powder | 3,600 to 4,800 tablets/hour | 340 x 250 x 500 (L x W x H) |
| TJ-MSP-03 | Tianjiu | Maximum compression pressure: 30kn; Maximum tablet diameter: 25mm; Maximum filling depth: 20mm; Weight: 150kg | Pharmaceuticals, Chemicals | 30-50 tablets per minute | 300 x 250 x 400 (L x W x H) |
Note: Single Punch Tablet Presses are available from various brands, each offering unique specifications and features. It is essential to consider maximum compression pressure, tablet diameter and filling depth, material handling capability, and production rate when choosing the right machine.
Part - 3：Components of a Single Punch Tablet Machine
To produce pharmaceutical tablets efficiently, a Single Punch Tablet Machine relies on crucial components such as a hopper, die, punch, cam track, and ejection bar.
Single Punch Tablet Making Machine Component overview
| Component | Function | Uses |
|---|---|---|
| Hopper | A container that holds the raw material and feeds it into the die. | To hold and dispense raw materials into the die. |
| Die | Tooling that forms a shaped cavity where the raw material is fed into and shaped into a tablet. | To create the desired shape and size of the tablet. |
| Punch | A piston-like component that compresses the raw material into the die. | To apply the necessary pressure to the raw material, compressing it to form a tablet. |
| Cam Track | A grooved component that controls the height and movement of the punch within the die. | To guide the punch's movement and control the thickness of the tablet. |
| Ejection Bar | A component that ejects the formed tablet from the die. | To remove the formed tablet from the die and send it for further processing. |
Note: Each component of the single punch tablet machine plays an essential role in the tablet compression process. Proper maintenance and calibration of each component are critical to ensure consistent tablet quality and output. It is also essential to consider the compatibility of each component with the material being processed when selecting a tablet machine.

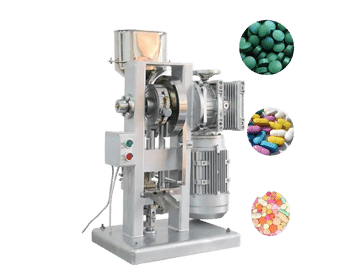

Part - 4：Factors to Consider Before Buying a Single Punch Tablet Machine
When in the market for a single punch tablet machine, it is crucial to take into account the following key factors: production capacity, ease of operation, suitability of materials, and cost. Paying attention to these essential elements will ensure a wise investment decision.
Points to note when Buying a Single Punch Tablet Machine
• Understand the terminology and working principle of single punch tablet machines
• Consider production capacity, machine size, ease of use, maintenance requirements and cost when purchasing a machine
• Rotary tablet press has higher production rates but single punch tablet machines are suitable for medium to small scale businesses
• Purchase from a reputable supplier that offers warranties and technical support
Tablet Press Machine for Sale
Automatic Rotary Continuous Tablet Press
The Automatic Rotary Continuous Tablet Press is an essential machine...
Read More
Rotary Effervescent Tablet Pressmachine
The Rotary Effervescent Tablet Press Machine is an essential tool...
Read More
High Speed Rotary Tablet Press Machine
The High Speed Rotary Tablet Press Machine is a versatile...
Read More- The Ultimate Guide to Buying a Single Punch Tablet Machine →
Part - 5：Maintenance and Cleaning of a Single Tablet Punching Machine
The tablet press machine market is ripe for growth, thanks to emerging trends and innovative technologies. Key manufacturers and vendors are leading the way and driving market trends. Don’t miss out on this promising opportunity in the global market.
Overview Global Market for Tablet Press Machine
| Topic | Description |
|---|---|
| History and Development | Invented in 1843, the tablet press has since undergone several technological advancements to produce high-quality tablets. |
| Importance of the Global Market | The global market for tablet press machines is crucial as it provides pharmaceutical, cosmetic, and chemical manufacturers with the necessary equipment to produce uniform and high-quality tablets efficiently. |
| Market Size and Trends | The market size for tablet press machines was valued at USD 2.8 billion in 2020, with an expected growth rate of 4.8% from 2021 to 2028, driven by technological advancements and increasing demand for generic drugs. |
| Regional Analysis | The Asia Pacific market accounted for the largest share of 40.9% in 2020, followed by North America and Europe. The Asia Pacific market is expected to grow at the highest CAGR of 5.6% from 2021 to 2028. |
| End-User Analysis | The pharmaceutical industry accounted for the largest share of 57.8% in 2020, followed by cosmetics and chemicals. Rising demand for generic drugs and increasing focus on research and development in the pharmaceutical industry are driving market growth. |
| Competitive Landscape | The market is highly competitive, with key players such as Fette Compacting, Korsch AG, IDEX MPT Inc., and HATA Industries. Collaborations, partnerships and acquisitions are commonly used strategies among market players in seeking growth opportunities. |
| Future Outlook | The market is expected to witness significant growth due to rising demand for generic drugs, emerging economies, technological advancements, increasing focus on research and development, and increasing adoption of automation. |
| Conclusion | The global market for tablet press machines is poised for continued growth, driven by increasing demand from the pharmaceutical, cosmetic and chemical industries, technological advancements, and expanding research and development activities. |
Part - 6：Common Issues in a Single Punch Tablet Machine and How to Fix Them
This guide covers practical solutions for commonly encountered problems with single punch tablet machines. If you’re dealing with sticking tablets, misaligned dies and punches, or difficulty in ejecting tablets, this is the perfect resource for you. Follow our comprehensive instructions, and get your tablet machine running smoothly in no time!
- Sticking Tablets
Problem
Sticking tablets refers to tablets that remain attached to either the upper or lower punch faces after ejection during the compression process. This can result in tablet defects and production downtime.
Causes
The three primary causes of sticking tablets are:
- Overloading the feed frame with powder, which can cause the feed frame to become overpressurized and prevent proper punch separation.
- Insufficient lubrication of the tooling, which can cause friction and prevent the tablet from releasing from the punch face.
- Damaged or worn tooling, which can result in poorly formed tablets that are more likely to stick.
Solutions
To fix sticking tablets, you can try the following solutions:
- Reduce the batch size or adjust the feed frame to prevent overloading. This can help to alleviate overpressurization and prevent sticking.
- Apply a suitable lubricant to the inside of the tooling. This can reduce friction and improve tablet release from the punch face.
- Inspect the tooling for damage or wear and replace as necessary. Worn or damaged tooling can cause poor tablet formation and increase the likelihood of sticking tablets.
- Troubleshooting Guide for Sticky Tablet Issues
| Troubleshooting Steps | Action |
|---|---|
| Check the moisture content of the granules | - Use a moisture analyzer to check the moisture content of the granules - If the moisture content is high, adjust the drying temperature or add additional drying time to reduce the moisture content. |
| Check the lubrication process | - Make sure the lubricant is being applied evenly - Use the correct type of lubricant for the tablet press - If the lubrication process is inconsistent, change the lubricant or adjust the lubricant application process. |
| Adjust the tablet compression force | - Ensure consistent force during all compression cycles - Verify that the correct amount of force is being applied to the tablets - Adjust the tablet compression force to the appropriate level. |
| Adjust the dwell time | - Verify that the dwell time is optimized for the specific type of tablet being manufactured - Adjust the dwell time as needed to ensure that it is optimal. |
| Investigate the quality of the lubricant being used | - Analyze the lubricant being used for issues such as contamination or degradation - If low-quality lubricant is suspected, consider changing to a higher-quality lubricant. |
- Misaligned Die and Punch
Definition of the Problem
Misaligned die and punch refer to the issue where the two components of a punching press are not properly aligned, causing the punch to hit the die at an incorrect angle, which can result in damage to both components, poor-quality output, and potential safety risks.
Causes of Misalignment
There are several causes of misaligned die and punch, including incorrect installation, wear and tear, improper use, and accidental damage. Ensure that the machine is operated properly to avoid these issues.
- Comprehensive Guide for Fixing Misaligned Die and Punch
| Troubleshooting Steps | Action |
|---|---|
| Check the moisture content of the granules | - Use a moisture analyzer to check the moisture content of the granules - If the moisture content is high, adjust the drying temperature or add additional drying time to reduce the moisture content. |
| Check the lubrication process | - Make sure the lubricant is being applied evenly - Use the correct type of lubricant for the tablet press - If the lubrication process is inconsistent, change the lubricant or adjust the lubricant application process. |
| Adjust the tablet compression force | - Ensure consistent force during all compression cycles - Verify that the correct amount of force is being applied to the tablets - Adjust the tablet compression force to the appropriate level. |
| Adjust the dwell time | - Verify that the dwell time is optimized for the specific type of tablet being manufactured - Adjust the dwell time as needed to ensure that it is optimal. |
| Investigate the quality of the lubricant being used | - Analyze the lubricant being used for issues such as contamination or degradation - If low-quality lubricant is suspected, consider changing to a higher-quality lubricant. |
- Difficulty in Ejecting Tablets
Checking for Damage in the Die and Punch
Before adjusting the tablet machine’s setting, it is crucial to check if there is any damage in the die and punch. This check is essential because any damage in these parts can cause difficulty in ejecting the tablets. Here’s an easy-to-follow process for checking damage:
Visual Inspection: Inspect the punch and die for visible signs of wear and tear, such as chipping or cracks, by thoroughly examining the surface.
Physical Inspection: If there are no visible signs of damage, then perform a physical test by placing a thin sheet of aluminum foil between the punch and die, and adjust the machine to its lowest compression force.
Analysis of Aluminum Foil: Examine the aluminum foil for any signs of damage, such as tears or wrinkles. If damage is present, adjust the machine settings or replace the punch and die.
Adjusting Formula Ratios
In some cases, adjusting the formula ratios can help ensure that the tablets eject without complications. This solution is especially useful when the tablets have a high weight variation or when they do not have the desired hardness. Here are the ratios to adjust:
Increase the disintegrant in the formula to help with tablet disintegration and dissolution.
Increase the lubricant in the formula to improve the tablet and machine lubrication.
Adjust the binder amount in the formula to improve tablet hardness and strength.
- Solutions to fix difficulty in ejecting tablets
| Solutions to fix difficulty in ejecting tablets | Description |
|---|---|
| Checking for damage in the die and punch | Inspect the die and punch for any visible signs of damage such as cracks or chips. If damaged, replace them immediately. |
| Adjusting tablet formulation ratios | Review the tablet formulation ratio with a qualified pharmacist or manufacturer to ensure the correct proportion of ingredients is used for optimal tablet compression. |
| Adjusting tablet machine settings | Adjust the tablet machine settings to optimize tablet compression. Increase the dwell time or lower the compression pressure as needed. Check the operating manual for specific instructions on machine settings. |
