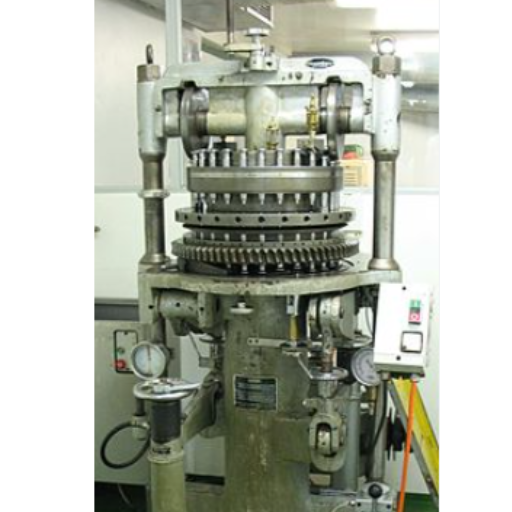

What is a Rotary Tablet Punching Machine?
A rotary tablet punching machine, also known as a rotary tablet press, is used in the pharmaceutical industry to manufacture tablets. The device compresses powder or granulated substances into tablet form through various mechanical processes. The end product is a compact, uniformly shaped tablet that is easy to consume and store.
Understanding the Basics of Tablet Presses
Tablet presses are used in various industries, including pharmaceuticals, food, and production. They comprise numerous components, including the hopper, feeder, dies, punches, and cams. The machine’s most important component is the compression zone, where powders are compressed into form. In this zone, a calculated amount of powder is compressed into a compact shape using punches and dies.
Advantages of Using a Rotary Tablet Press Machine
Using a rotary tablet press machine has a host of benefits, including:
High efficiency: A rotary tablet press machine is a highly efficient machine that can produce thousands of tablets per hour.
Uniformity of shape and size: The machine produces uniform tablets in shape, size, and weight. Moreover, the devices also minimize the chances of erosion or breakage during transportation.
Cost-effective: The rotary tablet press machine saves money over the long term, as it has low maintenance costs, higher speed, and accuracy. It also prevents the wastage of raw materials that could occur during the hand-preparatory process.
Exploring the Different Types of Rotary Tablet Presses
There are three main types of rotary tablet presses available on the market today, each with unique features and functions:
Single Station rotary tablet press: It’s a simple and rugged machine for small-scale production.
Multi-Station rotary tablet press: This machine has multiple stations and can produce up to thousands of tablets per hour.
High-speed rotary tablet press: These machines can produce up to 300,000 tablets per hour, making them the most efficient option.
Recommended Reading: TABLET PRESS MACHINE
Pharmaceutical Tablet Press: Key Features and Functions
The pharmaceutical tablet press is essential in producing medicine for mass consumption. It features several vital functions and features, including:
Constant Force: The tablet press applies a uniform amount of force to ensure the stability of the tablet.
Turret: A circular turret rotates, housing the die system and punch. The turret features four key components – die, punch, feeder, and cam.
Punch Head: The punch head is above the die and applies the pressure required to mold the tablet shape.
Die system: Dies control the size and shape of the produced pills. Each die has unique specifications determining the tablets’ shape, size, and coating.
How a Multi-Station Tablet Press Works
Multi-station rotary tablet presses are widely used in the pharmaceutical industry due to their high speed and efficiency. The machines press a pre-determined product dosage into the die cavity, resulting in accurately sized tablets. The process is automated and requires minimal human intervention.
The multi-station press consists of several stations arranged in a circular pattern. In each station, an identical series of actions occur: the feeder dispenses product into the die cavity, then punch compression, and then the tablet ejection process. The turret rotates as these actions take place. These rotations ensure that tablets are produced simultaneously in the individual stations of the machine. The multi-station press can also automatically apply different types of coatings, such as film, sugar, and enteric, on the tablets.
How Does a Rotary Tablet Punching Machine Work?
Critical Components of a Rotary Tablet Press
A Rotary Tablet Press comprises essential components operating in tandem to compress raw materials into the desired tablet form. These components include the compression tools, punches, and turrets. The compression tools assist in regulating the flow of the raw material into the dies, and the pointers, known as punches, stamp the desired shape onto the raw material. The turrets are responsible for simultaneously packing multiple natural materials to ensure an efficient and timely process.
Step-by-Step Process of Tablet Compression
The process of tablet compression is a rigorous one. It starts with preparing raw materials in the required proportion and mixing them to obtain a uniform blend. This mixture then undergoes a reduction in the rotary tablet pressing machine. The machine divides the mix into several dies with compression tools, forming the desired tablet form with the punchers. These finished tablets are then separated, collected, and subjected to the quality control process.
Understanding the Role of Punches and Compression Tools
A Rotary Tablet Punching Machine’s punchers and compression tools play a vital role in tablet compression. Compression tools regulate the flow of the raw material into the dies while ensuring equal distribution and uniformity. The punches assist in stamping the mixture into the desired shape and size while applying sufficient pressure to form the finished tablet.
Working Principles of Upper and Lower Punches
The upper and lower punches’ working principle involves alternating pressure to produce uniformly shaped tablets. The upper effectiveness applies pressure, and the lower energy moves upwards to eject the finished tablet. After the pill is removed, the points alternate to repeat the process.
The Importance of Turrets in Tablet Presses
Turrets play a significant role in automating the tablet compression process. They provide a platform for multiple die designs while enabling sequential movement in a clockwise motion to ensure that raw materials are processed adequately and efficiently. Turrets allow a faster process while providing the final product meets the desired quality standards.
Recommended Reading: Everything You Need To Know About Rotary Tablet Compression Machines
What are the Main Features and Benefits of Rotary Tablet Presses?
Rotary tablet presses are among the critical technologies used in pharmaceutical manufacturing, and their importance cannot be overemphasized.
Efficiency and Productivity Boost with Rotary Tablet Presses
One of the primary benefits of rotary tablet presses is their ability to enhance the efficiency and productivity of the production process. These machines use a rotary system that can produce up to 1,000,000 tablets per hour, making them suitable for large-scale manufacturing. With such an output speed, rotary tablet presses can save a lot of time and resources and increase the overall productivity of the process. This results in reduced costs and higher profitability for the manufacturer.
Granule Feeding System for Precise Tablet Compression
Another crucial feature of rotary tablet presses is their granule feeding system, which ensures more precise and consistent tablet compression. This feature is essential in pharmaceutical manufacturing, where product quality is paramount. The granule feeding system regulates the amount of material that goes into each tablet, resulting in consistent dimensions, weight, and drug content in each pill.
Exploring the Cavity and Compression Techniques
Rotary tablet presses also make use of specialized cavity designs that ensure optimal compression of the granules. Compression techniques, such as pre-compression and main squeeze, also play a vital role in tablet compression, leading to higher-quality products. These machines make it possible to achieve the desired tablet hardness, which is necessary for proper dissolution and bioavailability of the drug.
How Rotary Presses Prevent Overload and Ensure GMP
GMP (Good Manufacturing Practice) compliance is critical to pharmaceutical manufacturing. Rotary tablet presses use various technologies and features to ensure compliance with GMP standards, such as the automatic rejection of faulty tablets and the availability of data tracking systems. Also, these machines prevent overload by incorporating overload detection systems that signal when the device is reaching its capacity limit, avoiding any damage to the equipment or production process.
Comparing Rotary Tablet Presses with Single-Punch Presses
Rotary tablet presses differ from single-punch presses in various ways. Single-punch presses are less complex and suitable for small-scale tablet manufacturing, while rotary ones are more advanced and designed for large-scale manufacturing. Rotary tablet presses have a higher output speed, a granule feeding system, and advanced cavity designs that allow for more precise compression. On the other hand, single-punch presses have a lower output speed and cannot produce tablets with the same level of precision as rotary tablet presses.
What are the Different Types of Tooling in Rotary Tablet Presses?
Two main types of tooling are used in rotary tablet presses: compression and punching. Compression tooling is used to compress the powder blend into tablets, while riddling tooling is used to hit the compressed powder into tablets of the desired shape and size. Compression tooling is divided into subcategories: dies, punches, and cams.
Understanding the Role of Tooling in Tablet Compression
The tooling is crucial in tablet compression as it determines the tablet’s size, shape, and quality. The tooling determines the amount of pressure applied to the powder blend during contraction, which affects the tablet’s hardness, friability, and disintegration.
Exploring the Various Tooling Stations in Rotary Tablet Presses
The rotary tablet press consists of multiple tooling stations for different tablet compression stages. The main tooling stations include the feed frame, pre-compression station, central compression station, and ejection station. Each station plays a specific role in the tablet compression process, and the tooling at each station is designed to perform its assigned function with precision.
Common Tooling Components for Efficient Tablet Production
The standard tooling components used in tablet manufacturing include dies, punches, and cams. The dice shape the powder blends into tablets while the energies apply pressure to compress it into pills. The cams control the movement of the tooling during the rotary tablet press operation, ensuring that the compression and ejection of tablets are done accurately.
Advantages of Customized Press Tooling for Specific Tablet Shapes
One of the significant advantages of customized press tooling is that it allows the manufacturer to create tablets of specific shapes, sizes, and properties. Customized press tooling is designed to meet the particular needs of the tablet manufacturer, thereby ensuring that the tablets produced meet the required standards.
Choosing the Right Tooling Type for Tablet Manufacturing
Several factors must be considered when choosing the correct tooling type for tablet manufacturing. The factors include the type of tablet to be produced, the size of the tablet production run, the equipment utilized, and the quality standards required. Using the correct tooling type is essential in ensuring efficient tablet production.
Recommended Reading: Find The Perfect Machine For A Tablet Press
What Factors Should You Consider When Choosing a Rotary Tablet Punching Machine?
Tablet Type and Size: The first consideration for selecting a rotary tablet punching machine is the type and size of the tablets the manufacturer intends to produce. They are choosing a device that can make the desired shape, size, thickness, and weight of the device is vital.
Capacity mak-eduction Speed: The production capacity and speed of the machine should align with the manufacturer’s production goals. Choosing a device that can handle the required production volumes within a reasonable time is essential.
Material and Design: The machine material and design should be easy to clean and maintain to ensure optimal efficiency and product safety. Additionally, the machine should meet regulatory requirements and industry standards.
Cost and Budget: The cost of the machine should align with the manufacturer’s budget. The machine’s price should not compromise quality, efficiency, or safety.
Key Specifications and Features of the Machine
Pressure and Force: The machine should have a suitable strain and force capacity to compress the tablet properly.
Turret Destraine’s turret design should allow easy access for maintenance and cleaning. Choosing a customized turret that matches the manufacturer’s tablet specifications is also essential.
Control System: The machine’s control system should be user-friendly and adaptable to various production variables, including tablets’ compression force, speed, and weight.
Material Feed System: The machine should have a reliable material feeding system that minimizes waste and ensures consistent tablet weight and size.
Understanding the Role of Hoppers and Feeders
Hopper: The hopper serves as the primary source of raw materials for the tablet production process. It stores and feeds the material to the feeder for compression into tablets.
Feeder: The feeder regulates the amount of material that enters the compression stage. It ensures consistent tablet weight and size, minimizing waste and ensuring efficient production.
Exploring the Different Types of Tablet Presses in the Market
Single Rotary Tablet Press: This type of tablet press is suitable for small-scale production. It has a single punch that compresses the tablet vertically.
Double-Sided Rotary Tablet Press: This type of tablet press has two punches that compress the tablet from both sides. It has a higher production capacity than the single rotary tablet press.
High-Speed Tablet Press: This press type has a higher production capacity and speed. It is suitable for large-scale tablet production, with output rates of up to 400,000 tablets per hour.
Pharmaceutical Tablet Press vs. Commercial Tablet Press: Key Differences
Design: Pharmaceutical tablet presses have higher precision and accuracy than commercial ones.
Materials: Pharmaceutical tablet presses use high-quality materials to meet regulatory requirements. Commercial tablet packs use lower-quality materials suitable for non-pharmaceutical products.
Cost: Pharmaceutical tablet presses are more expensive than commercial ones due to their precision and regulatory requirements.
Essential Considerations for Efficient and Safe Tablet Production
Regular Maintenance: Regular maintenance ensures optimal machine efficiency and safety.
Compliance with Regulatory Requirements: Compliance with regulatory requirements minimizes the risk of product recalls and negative legal implications.
Employee Training: Proper employee training ensures the safe and efficient operation of the machine.
Recommended Reading: Discover The Essential Parts Of Tablet Compression Machines
Frequently Asked Questions:
Q: What is a rotary tablet punching machine?
A: A rotary tablet punching machine, also known as a rotary tablet press machine or multi-station tablet press, is a type of pharmaceutical tablet press machine used to compress different materials into tablets.
Q: What are the advantages of a rotary tablet punching machine?
A: The advantages of a rotary tablet punching machine include higher production capacity, precise tablet weight control, improved tablet quality, versatility in tablet design, easy tablet ejection, and efficient tablet production processes.
Q: How does a rotary tablet punching machine work?
A: A rotary tablet punching machine compresses materials, such as powders or granules, into tablets using a turret with multiple die cavities. The upper punch compresses the material in the die cavity, and the tablet is ejected from the machine.
Q: What is the role of compression in a rotary tablet punching machine?
A: Compression is the process of applying pressure to the materials in the die cavity of a rotary tablet punching machine. This pressure compacts the materials and forms them into a tablet shape.
Q: What is a single-punch tablet press?
A: A single-punch tablet press is a tablet press machine that uses a single punch to produce tablets one at a time. It is suitable for small-scale tablet production.
Q: What is the difference between a rotary tablet punching machine and a single punch tablet press?
A: The main difference between a rotary tablet punching machine and a single punch tablet press is the production capacity. A rotary tablet punching machine can produce tablets in a continuous rotary motion with multiple dies. In contrast, a single punch tablet press has tablets one at a time using a single die.
Q: What are the main components of a rotary tablet punching machine?
A: The main components of a rotary tablet punching machine include the turret, upper punch, lower punch, die cavity, ejection system, compression rollers, and control system.
Q: What are the contact parts in a rotary tablet punching machine?
A: The contact parts in a rotary tablet punching machine are the components that come into direct contact with the materials being compressed, such as the upper punch, lower punch, and die cavity. These parts need to be easily accessible for cleaning and maintenance.
Q: What is the role of press tooling in a rotary tablet punching machine?
A: Press tooling in a rotary tablet punching machine refers to the set of upper punches, lower punches, and dies used to form tablets of specific sizes and shapes. The press tooling determines the characteristics of the tablet.
Q: What are the different tablet manufacturing processes in a rotary tablet punching machine?
A: The tablet manufacturing process in a rotary tablet punching machine involves powder or granule preparation, feeding the materials into the machine, compression, tablet ejection, and collection of the finished tablets.
