Everything About Multi Station Rotary Press

Everything About Multi Station Rotary Press

What is Multi-Stationtion Rotary Press?

A Multistation Rotary Press is a machine used in pharmaceutical manufacturing to produce large quantities of tablets. It is a mechanical device that forms tablets from powdered or granulated materials by compressing them. The multistation rotary press is a high-speed, high-capacity tablet press that produces high-quality tablets at a fast rate. This machine houses multiple stations and can have thousands of pills per hour.

Definition and Function of a Multistation Rotary Press

The Multistation Rotary Press machine has multiple punches and dies that can compress powder or granular substances to form tablets. It works similarly to a Single Tablet Press, but instead of a single force, it uses numerous points and dies to produce a large output of tablets. Each station of the rotary press contains a set of facts and a corresponding set of dies. A Multistation Rotary Press has pills in bulk quantity, each with a uniform shape, size, and weight.

Advantages of Using a Multistation Rotary Press

The Multistation Rotary Press has several advantages, making it a popular choice for the pharmaceutical industry. Firstly, it can produce many tablets per hour, significantly reducing the manufacturing time and cost. Secondly, the machine can be adjusted easily to produce tablets of different sizes and shapes. Thirdly, the tablets produced by the Multistation Rotary Press have a uniform weight, thickness, and hardness, making them more accurate, stable, and efficient. Lastly, the machine’s spare parts are readily available, and the maintenance cost is minimal.

Parts of a Multistation Rotary Press

The Multistation Rotary Press consists of several parts, including:

Hopper: The Hopper is the part where the powdered or granulated materials are fed into the machine.

Feeder: The feeder ensures that the materials are fed uniformly into the Hopper.

Turret: The Turret is the central part of the machine that holds several stations where the upper and lower punches and dies are located.

Lower Punch: The lower punch is located on the lower surface of the Turret and moves up and down to compress the materials.

Upper Punch: The upper punch is directly above the lower point and moves up and down to compress the die’s materials.

Die: The die is a stainless steel disc that contains a cavity where the materials are compressed to form tablets.

How Does a Multistation Rotary Press Work?

The Multistation Rotary Press compresses powdered or granulated materials fed into the machine through the Hopper. The materials are provided into the feeder, ensuring they are uniformly distributed over the Hopper. The materials then move into the dies, where the lower punch moves upwards to compress them. The upper effectiveness then moves downward, forcing the materials to take the form of the dice.

Comparison Between Multistation Rotary Press and Single Punch Tablet Press

The Multistation Rotary Press and the Single Punch Tablet Press differ. The Single Punch Tablet Press can only produce one tablet at a time, whereas the Multistation Rotary Press can produce multiple pills simultaneously. The Single Punch Tablet Press is suitable for making small quantities of drugs, whereas the Multistation Rotary Press is suitable for high-volume production. The Single Punch Tablet Press also requires frequent cleaning and setup for different sizes, leading to production downtime. At the same time, the Multistation Rotary Press can adjust quickly to different tablet sizes.

Recommended Reading: Tablet Press Machine Information

How to OperatMulti-Stationtion Rotary Press?

A Multistation Rotary Press is an essential equipment in the manufacturing industry that produces high-quality products in large quantities. It provides operators with a reliable and efficient way to create high volumes of products quickly and consistently. Here are the step-by-step instructions on how to operate a Station Rotary Press:

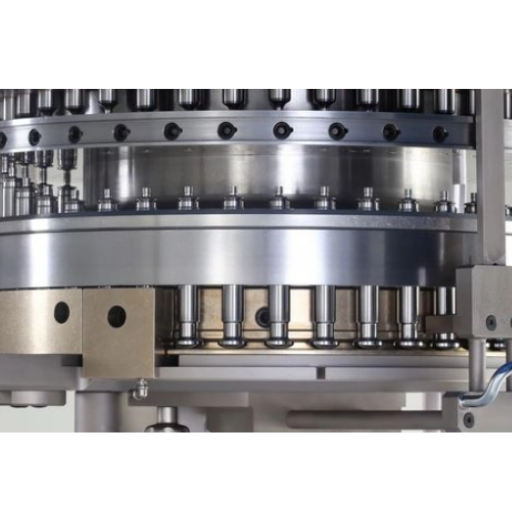

multi station rotary press

Step-by-Step Guide to Operating a Multi-Station Rotary Press:

First, ensure that all safety guidelines are followed before starting the equipment.
Next, load the machine with the necessary tooling and accessories.
Switch the rotary press on to start the production process.
As the press begins to spin, ensure that the product material is fed evenly into each station of the rotary press.
Continuously monitor the production process to ensure consistency and quality.
Once production has been completed, switch the machine off.

Important Safety Guidelines for Operating a Multistation Rotary Press:

Always ensure the equipment is kept in top condition, with any damaged parts replaced promptly to prevent accidents.
Ensure that all safety guards and devices are secure before starting the press.
Operators must use appropriate personal protective equipment, such as gloves and safety glasses, to safeguard against potential hazards.
Never attempt to alter or modify the machine without the manufacturer’s approval.
Always follow the manufacturer’s recommended maintenance procedures to ensure the equipment’s continued safety and reliability.

Troubleshooting Common Issues with Multistation Rotary Press:

Uneven product output is among the most common issues resulting from misaligned or worn rotational parts. A thorough inspection of these parts is necessary to resolve this issue.
If the motor seems to be struggling or failing, this can be due to a range of potential issues, such as worn or broken bearings or improper belt tension. An experienced maintenance specialist should be called to assess and address the issue’s root.
Inconsistent product quality may occur if the product is incorrectly fed or a specific station has mechanical issues. Operators must inspect the machine for wear and tear or incorrect settings and make necessary adjustments.

Tips for Efficient Operation of a Multistation Rotary Press:

Efficient production requires operators to thoroughly understand the machine’s capabilities and limitations to optimize settings for maximum efficiency.
Regular maintenance and cleaning of the press will minimize breakdowns and prolong its lifespan.
Always invest in high-quality tooling and accessories well-suited for the specific product.
Monitor the production process consistently to ensure consistency and quality output.

Recommended Tooling and Accessories for Multi Station Rotary Press:

Use high-quality punches or dies for optimal product cutting.
Cam transmissions are necessary for precise movement between stations.
Ensure the correct feeder is utilized for optimal feeding efficiency.
A press monitor system can serve as an efficient method of identifying issues that may require maintenance or adjustment.

Recommended Reading: Find The Perfect Machine For A Tablet Press

What are the Key Components of the Multi-Stationtion Rotary Press?

A Multistation Rotary Press is a highly efficient and complex machine that requires the coordination of various components to function seamlessly. Understanding the role and importance of each element is essential to achieving exceptional results in production.

Upper and Lower Punches in a Multi-Station Rotary Press:

The Upper and Lower Punches in a Multistation Rotary Press are crucial components that work together to create the product. The Upper Punch sits on the Turret and shapes and compresses the product. At the same time, the Lower Punch is positioned underneath the die and supports the development during the compression process. These punches come in various shapes and sizes, depending on the product. Each point’s speed, force, and position are carefully controlled to ensure consistency and accuracy in the product.

The Role of Turret in a Multistation Rotary Press:

The Turret is considered the heart of the Multistation Rotary Press, allowing the machine to rotate and index to each station. The Turret moves the die and punches from one station to another, allowing for the repetition of the production process. This component has to be precise, well-calibrated and maintained correctly, or it can significantly affect the production process.

The Function of the Hopper in a Multistation Rotary Press:

The Hopper in a Multistation Rotary Press feeds the raw materials into the machine. It provides the material into a press section where it gets compressed. The Hopper must be adequately designed to allow for precise feeding of the materials so that the resulting product is consistent. The Hopper is available in various designs, and its selection depends on the properties of the material used.

Understanding the Die Cavity of a Multistation Rotary Press:

The Die Cavity in a Multistation Rotary Press houses the raw material, which is then compressed by the punches to form a specific shape. The die’s size and shape dictate the final product’s condition. Various types of die cavities are used in a Multistation Rotary Press, such as the open cavity, closed cavity, and semi-closed cavity, each with unique properties and applications.

The Importance of the Cam Track in a Multistation Rotary Press:

The Cam Track is a component of the Multistation Rotary Press that determines the accuracy and consistency of the product produced. It controls the movement of the punches, ensuring that they are in the correct position and at the right time during each stage of production. The Cam Track is meticulously prepared and finely tuned to ensure the product is formed precisely and consistently. It is an essential component of the machine that interacts with all the other members to ensure that the product meets the desired standards.

How to Maintain and TroubleshooMulti-Stationtion Rotary Press?

A multistation rotary press is an essential piece of equipment in commercial printing. This powerful machine delivers excellent output quality and throughput. However, like any other machine, it requires regular maintenance to run smoothly and efficiently.

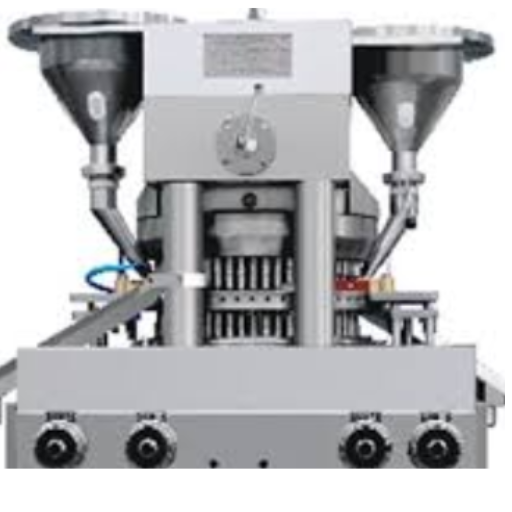

multi station

Regular Maintenance Tips for a Multistation Rotary Press

Lubrication: Keeping your rotary press well-lubricated is crucial to its longevity and performance. Use high-quality lubricants such as oil and grease suitable for the machine’s moving parts to keep it running smoothly.

Cleaning: Regular cleaning of the machine’s moving parts is essential to keep it free of dirt, debris, and dust build-up. Clean the device using a soft cloth and a non-abrasive cleaner after every use.

Inspection: Regular visual inspection of your multistation rotary press will help you identify and fix potential issues before they cause significant damage. Check the belts, bearings, and pulleys for signs of wear or damage.

Keep Electrical Components Clean: Ensure that all electrical components of the machine are clean and covered to prevent dust and dirt from entering.

Common Issues and Troubleshooting Techniques for a Multi-Station Rotary Press

Poor Registration: If your rotary press is having trouble keeping accurate registration during printing, the most likely cause is misalignment. Adjust the alignment of the machine carefully to remedy the issue.

Feeding Problems: Feeding problems can occur if the machine doesn’t pick up the sheets correctly. Adjust the sheet feeder to ensure it is set to the appropriate height, and adjust the settings according to the paper and thickness you use.

Patchy Printing: Patchy printing is one of the most common issues with rotary presses. Ensure that all the rollers are clean and free from ink build-ups.

Mechanical Failure: Mechanical failures can occur due to wear and tear of the machine’s moving parts. In such cases, contact your machine manufacturer’s service center to assess the severity of the damage.

Changing Tooling and Accessories in a Multistation Rotary Press

Changing the tooling and accessories of your multistation rotary press is crucial to its proper functioning. You will need to follow the following steps to change the tooling or accessories successfully:

Please turn off the machine and disconnect it from the power source.

Remove the current tooling or accessory by unscrewing and removing the existing bolts from the device.

Install the new tooling or accessories carefully by fitting them into place and tightening the bolts.

Turn on the power and check if the device is working correctly.

Restoring Performance and Efficiency of a Multistation Rotary Press

If you notice any decrease in the performance or efficiency of your multistation rotary press, inspect the machine for any damage or jam. During the inspection, check if any components need cleaning or replacement.

Also, consider running test prints to identify any issues with the release of ink or paper.

Preventive Measures to Extend the Lifespan of a Multistation Rotary Press

Follow the manufacturer’s guidelines while operating the machine.

Regular maintenance of the machine is necessary to prevent wear and tear of the machine’s moving parts.

Clean and lubricate the machine frequently.

Store the machine in a clean and dust-free environment.

Recommended Reading: High Speed Rotary Tablet Press Machine

What are the Safety Guidelines for UsinMulti-Stationtion Rotary Press?

A Multistation Rotary Press is a heavy-duty machine commonly used in industrial manufacturing, and operators and workers need to follow safety guidelines when using this equipment. Here are some policies to ensure a safe working environment:

multi station rotary press

Importanpoliciesowing Safety Guidelines when Using a Multistation Rotary Press:

Following safety guidelines is crucial when operating a Multistation Rotary Press because this machine can cause severe injury or even death if misused. The safety guidelines are in place to prevent accidents and protect the operator and other nearby workers.

Common Safety Hazards and Precautions for a Multi-Station Rotary Press:

The most common safety hazards associated with a Multistation Rotary Press include:

Pinch points: Where fingers can get caught between moving parts of the machine

Precautions: Operators should avoid wearing loose clothing or jewelry while operating the machine. Ensure that all guards and safety devices are in place and good working condition. Workers should also avoid reaching inside the machine while it is in operation.

Electrical hazards: Where there is a risk of electrical shock or electrocution.

Precautions: Workers should wear dry hands and protective gear while working with the machine. Inspect the the machine’s wiring, cord, and plug regularly to ensure they are in good condition.

Noise hazards: Where prolonged exposure to loud noise can cause hearing loss or other hearing-related problems.

Precautions: Workers should wear appropriate personal protective equipment such as earplugs or earmuffs.

Moving parts: The Multistation Rotary Press has many moving factors that can cause injuries.

Precautions: All moving parts of the machine should have proper guard covers. Employees should not attempt to remove the guards.

Safe Handling of Tooling and Accessories in a Multistation Rotary Press:

Proper handling of tooling and accessories can also prevent accidents when using a Multistation Rotary Press. Here are a few safety guidelines to follow:

Good setup: Before using the machine, ensure all components and parts are correctly assembled according to the manufacturer’s instructions.

Cleanliness: Always keep the machine and tooling clean and debris-free so it functions properly.

Inspection: Inspect all tooling and equipment before using it in the machine to avoid any defects that may cause accidents.

Emergency Procedures and Safety Protocol for a Multistation Rotary Press:

In case of an accident or unexpected event, there are a few safety protocols that should be followed to ensure the safety of everyone:

Stop the machine immediately: When an accident occurs, instantly turn off the device to prevent further damage or injury.

Assist the injured: If any worker is injured, call for help and provide immediate assistance.

Notify management: Report the injury and accident to the management immediately.

Training and Certification Requirements for Operating a Multistation Rotary Press:

It is important to undergo proper training to operate a Multistation Rotary Press safely. The training should cover:

The appropriate use of the machine, tooling, and accessories.

The safety guidelines and procedures to follow when using the device.

Emergency procedures in case of an accident or unexpected event.

Certification may be required to operate a Multistation Rotary Press. To obtain certification, the operator should have the necessary training, education, and experience to develop the required skills and knowledge. Certification ensures the operator can operate the machine correctly and safely.

Recommended Reading: Rotary Tablet Machine Information

Frequently Asked Questions:

multi station

Q: What is a multistation rotary press?

A: A multistation rotary press, also known as a rotary tablet press, is used in the pharmaceutical industry to compress granules or powder into tablets.

Q: What is tablet compression?

A: Tablet compression is the process of compressing granules or powder into tablets using a tablet press machine.

Q: What are the advantages of a rotary tablet press?

A: The advantages of a rotary tablet press include higher production output, faster tablet manufacturing process, consistent tablet weight and size, improved tablet hardness and strength, and reduced operator intervention.

Q: What are the parts of a rotary tablet press?

A: The parts of a rotary tablet press include the Turret, tooling stations, compression machine, tablet weight and granule feeders, and control system.

Q: How does a rotary tablet press work?

A: A rotary tablet press rotates the Turret, containing multiple tooling stations. The granules or powder are fed into the tooling stations, and the compression force is applied to form tablets.

Q: What is the purpose of the tooling station in a rotary tablet press?

A: The tooling station in a rotary tablet press is responsible for holding and compressing the granules or powder to form a tablet.

Q: What is the compression force in a rotary tablet press?

A: Compression force is the pressure applied to the granules or powder during tablet compression. It determines the tablet’s hardness and strength.

Q: What is a single-punch tablet press?

A: A single-punch tablet press is a type of tablet press that uses a single tooling station to compress granules or powder into tablets.

Q: How does a multistation rotary press differ from a single-punch tablet press?

A: Unlike a single punch tablet press, a multistation rotary press has several tooling stations and can produce more tablets.

Q: What is the role of a pharma guide in a multistation rotary press?

A: A pharma guide is a comprehensive reference tool that provides information on different stages of tablet compression and the operation of a multistation rotary press. It is a must-watch for a complete explanation of the machine.
